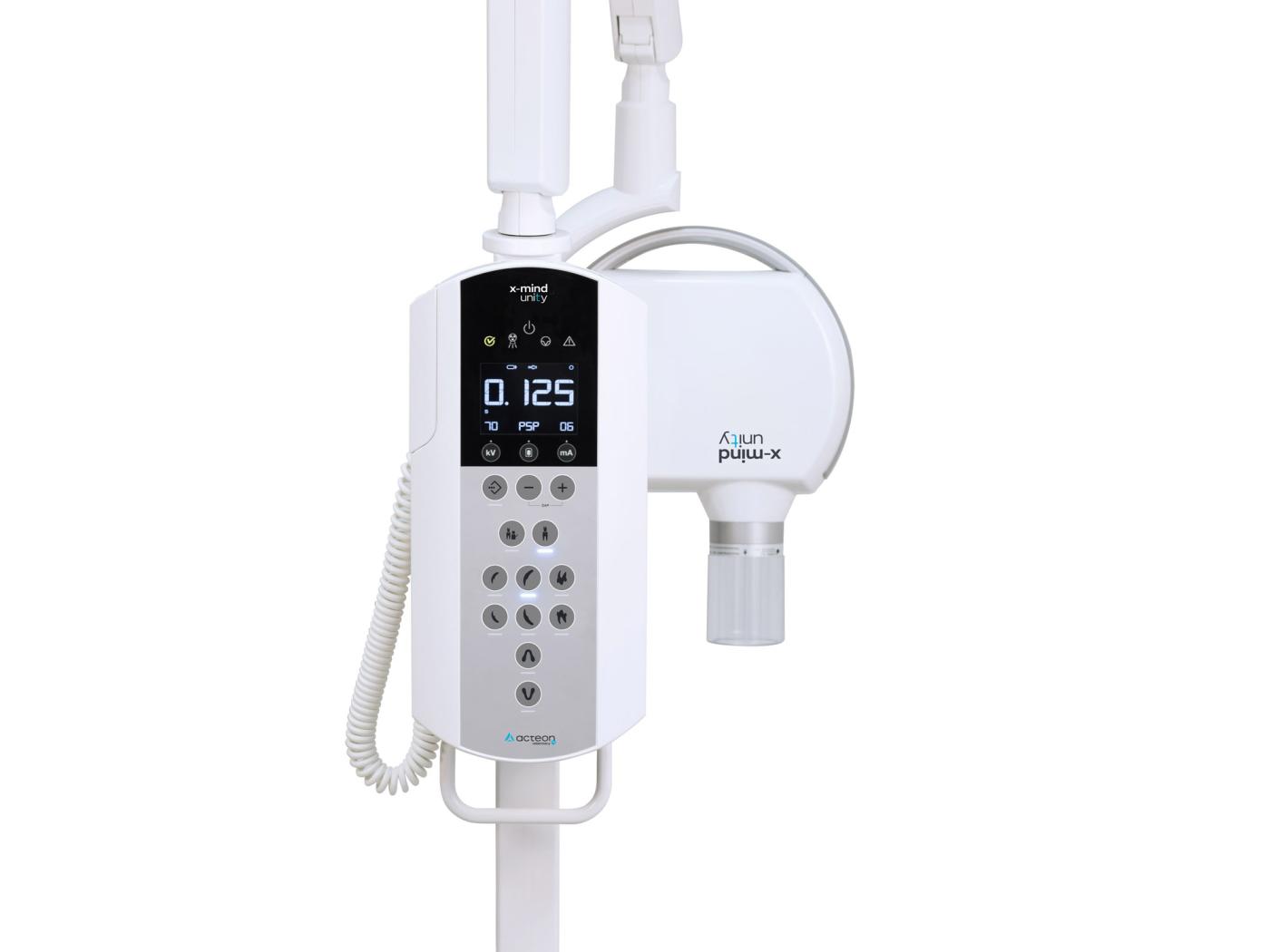

X-MIND UNITY – Reliable X-ray technology that reduces radiation exposure

Designed to your image

Because you pay more and more attention to the look and effectiveness of your practice, ACTEON® has developed X-Mind® unity with:

  • uncompromising design
  • clean lines
  • superior materials
  • unique technological advantages

Fluidity and stability

You can singlehandedly position and stabilize X-Mind® unity. Movement is fluid and is done without any effort or stress. The anti-vibration and anti-movement mechanism ensures drift free positioning during an exposure.

Work comfort

Due to its ergonomically designed holder, there is no danger of the sensor falling or breaking. The sensor always remains within hands reach for optimal working comfort. SOPIX® inside is internally wired eliminating the need for external wiring: ease of use and aesthetics of your practice.

Flexible installation alternatives

The X-Mind® unity can accommodate any operatory configuration. 3 arm lengths are available: 0.40 m, 0.80 m, 1.10 m and can be:

  • top wall mounted
  • bottom wall mounted

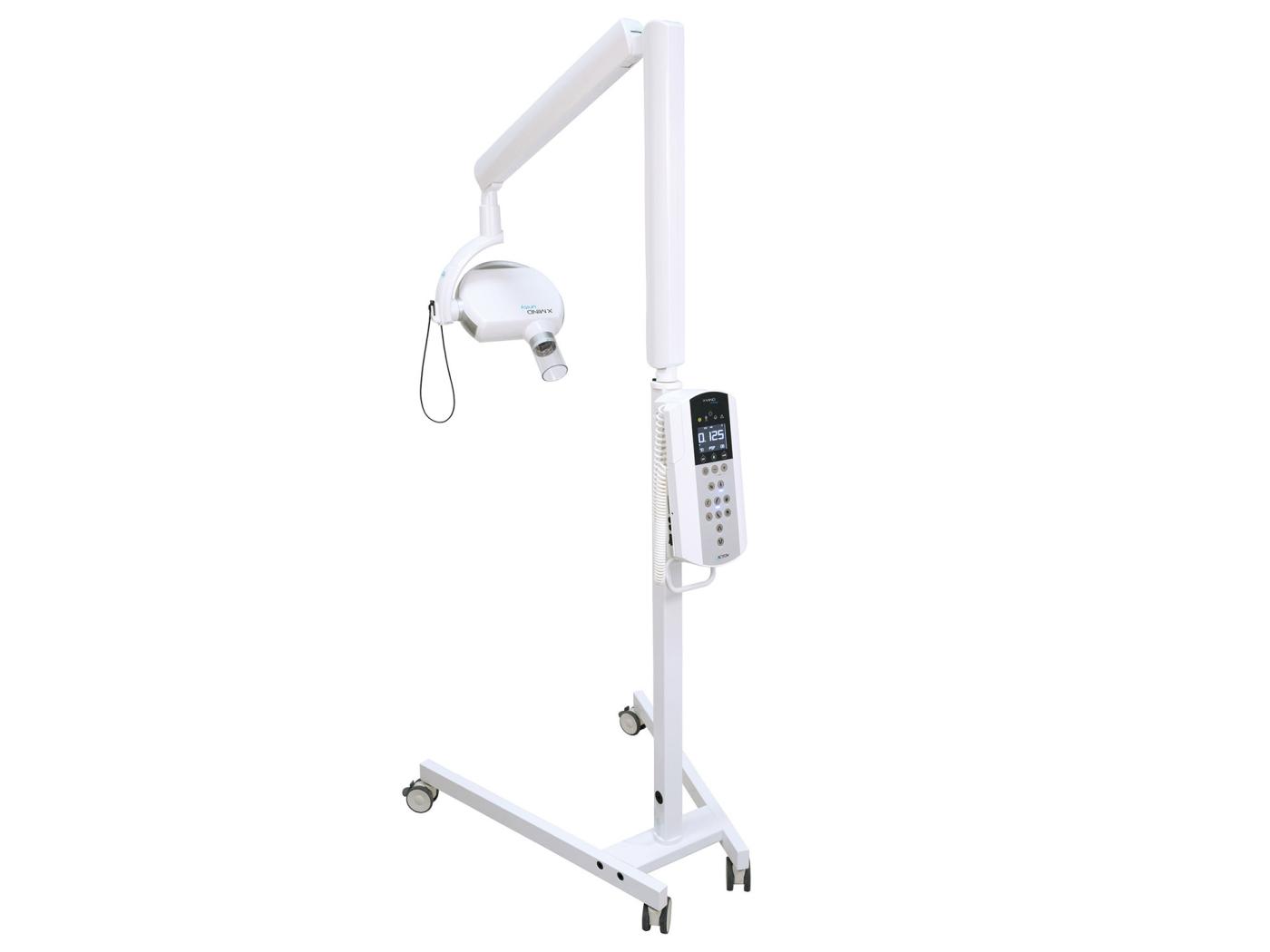

A mobile version is also available.

Variety of cones:

  • Circular short cone 20 cm (8’’)
  • Circular long cone 30 cm (12’’)
  • Rectangular short cone 20 cm (8’’)
  • Rectangular long cone 30 cm (12’’)

Technical specifications:

Classification: Electromedical equipment, Class 1, type B
Suppy voltage: 100 – 240 V
Power absorption at 230 V: 850 VA
X-ray tube: TOSHIBA D-041 5 (60/65/70 kV)
X-ray tube voltage: 60 kV + 65 kV +70 kV
Anode current: 4 - 7 mA
Focal spot: 0,4 mm
Total filtration: >1.5 mm Al @ 70 kV
Leakage radiation: < 0,25 mGy/h
Technology: High frequency DC
Timer: from 0.02 to 2 seconds
Weight of the head: 6 kg
Total weight: 23 kg
Mobile version: 0.80 m x 0.70 m x 1.10 m (L x W x H)
Accessories : Second control button with remote exposure switch, RX indicator light for external use
