Dental Radiography – Imaging systems for veterinary supplies

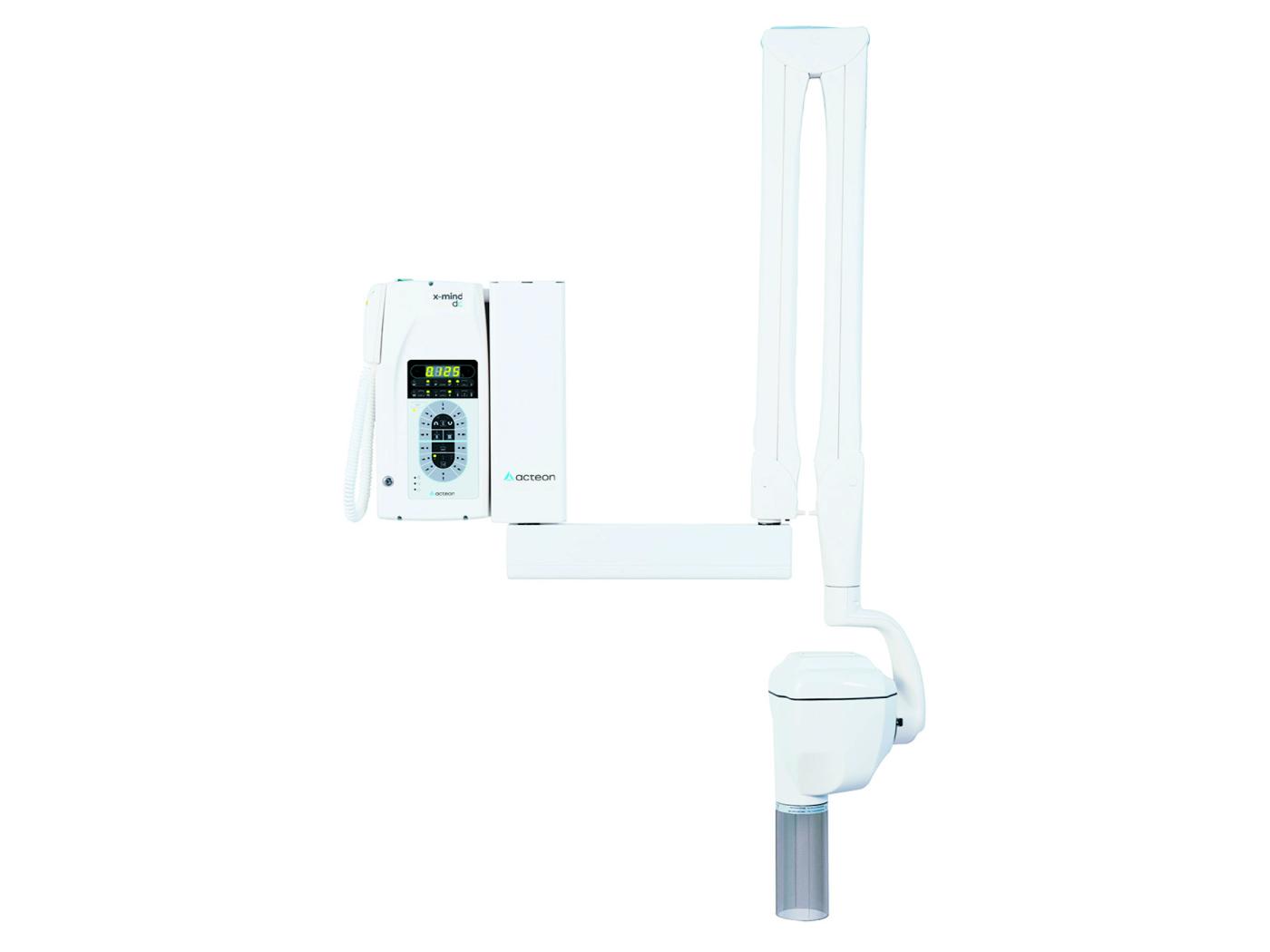

X-MIND DC – The easy and smart intraoral X-ray system for high quality requirements.

Reliability

With the X-Mind® DC intraoral X-ray system, safe exposure levels and high-quality images are guaranteed! Operating at high frequency, it facilitates the emission of very high-quality radiation whenever it is used. This is made by the “double chamber” where the tube and the electronic components are separated. The control software automatically compensates for variations in main voltages and the radiation emitted is always of the highest quality to provide pictures with reproducible parameters.

Naturally protective – Controlled dosage for maximum protection

The exposure time control pre-set by the microprocessor ensures a controlled dose for a better protection of you and your collaborators. Exposure times are reduced with the use of digital intraoral X-ray systems.
The timer built within the X-MIND® DC calculates the exposure times, which are adjusted perfectly to digital radiography (from 0.020 up to 3.200 sec. within 23 steps). With digital sensors the X-ray dose will be reduced by approx. 75 % in comparison to conventional developing systems.

User friendly - Work more efficiently with the easy to use intraoral X-ray system

Improve your workflow with clearly organized dedicated pre-programming keys. With the push of a button, you control:

  • The parameters: 60 or 70 kV and 4 or 8 mA.
  • The types of sensors: traditional film or digital
  • The patient morphology
  • The exposure time according to the type of tooth.
  • The exposure times can be customized and programmed to adapt to your clinical needs.

Variety of cones

  • Circular short cone (20cm DFP)
  • Circular long cone (31cm DFP)
  • Rectangular long cone, rotatable (31cm DFP)

Technical specifications:

Classification: Electromedical equipment, Class 1, type B
Suppy voltage: 230 V - 50/60 Hz
Power absorption at 230 V: 1,4 kVA
X-ray tube: New Toshiba DG 073B (60-70 kV)
X-ray tube voltage: 60 + 70 kV
Anode current: 4 - 8 mA
Focal spot: 0,7 mm
Total filtration: Equivalent to 2 mm Al at 70 kV
Leakage radiation: < 0,25 mGy/h
Technology: DC
Timer: from 0.02 to 3.2 seconds
Weight of the head: 5,5 kg
Total weight: 25 kg
Mobile version: 0,80 m x 0,70 m x 1,10 m (L x W x H)
Accessories : Second control button with remote exposure switch, RX indicator light for external use
X-MIND DC – The easy and smart intraoral X-ray system for high quality requirements.
X-MIND DC – The easy and smart intraoral X-ray system for high quality requirements.
X-MIND DC – The easy and smart intraoral X-ray system for high quality requirements.

Click the images to enlarge. - Subject to technical changes.
