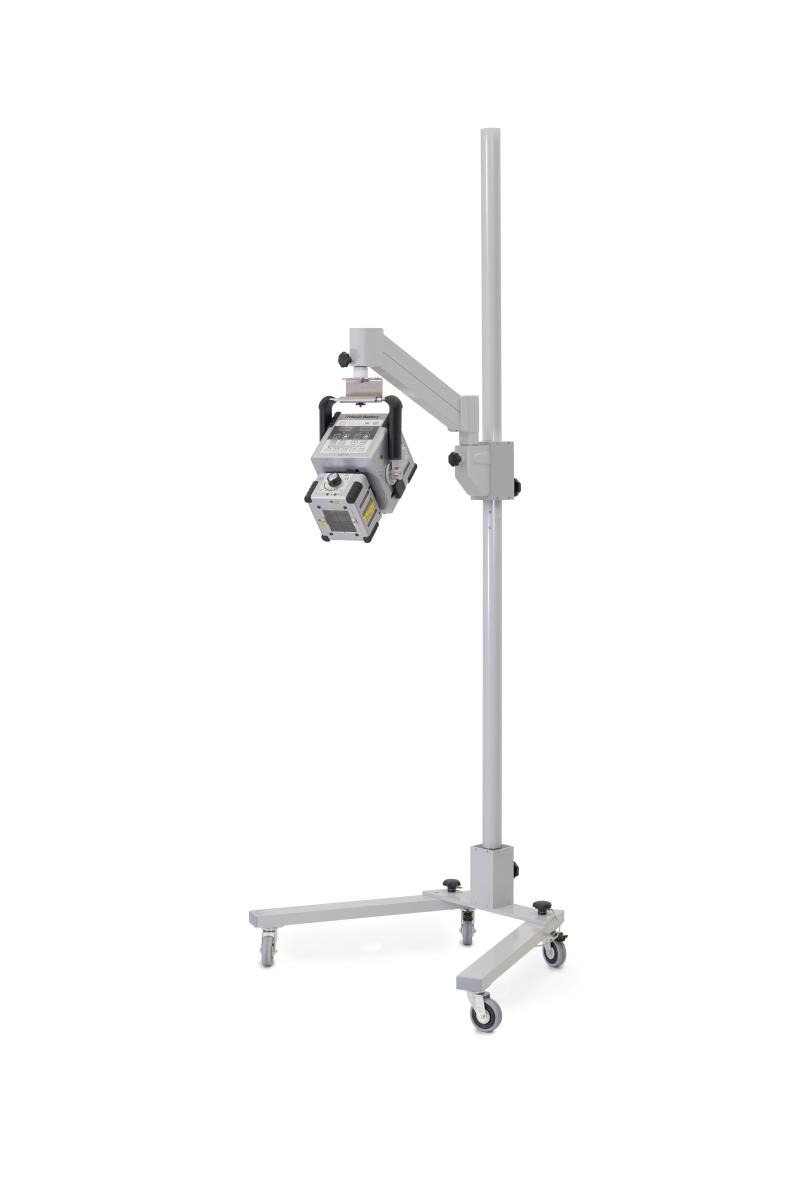

Trolley stand light with spring arm

Trolley stand for all GIERTH X-ray units up to 10 kg

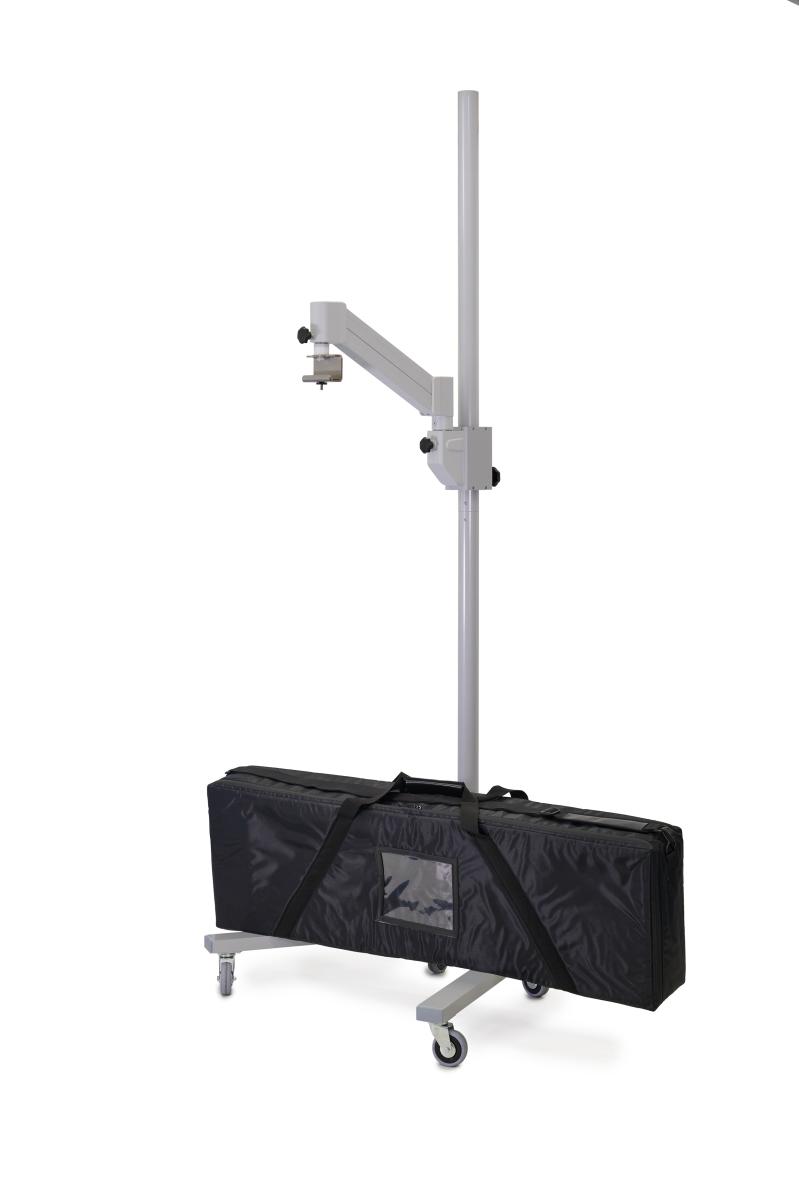

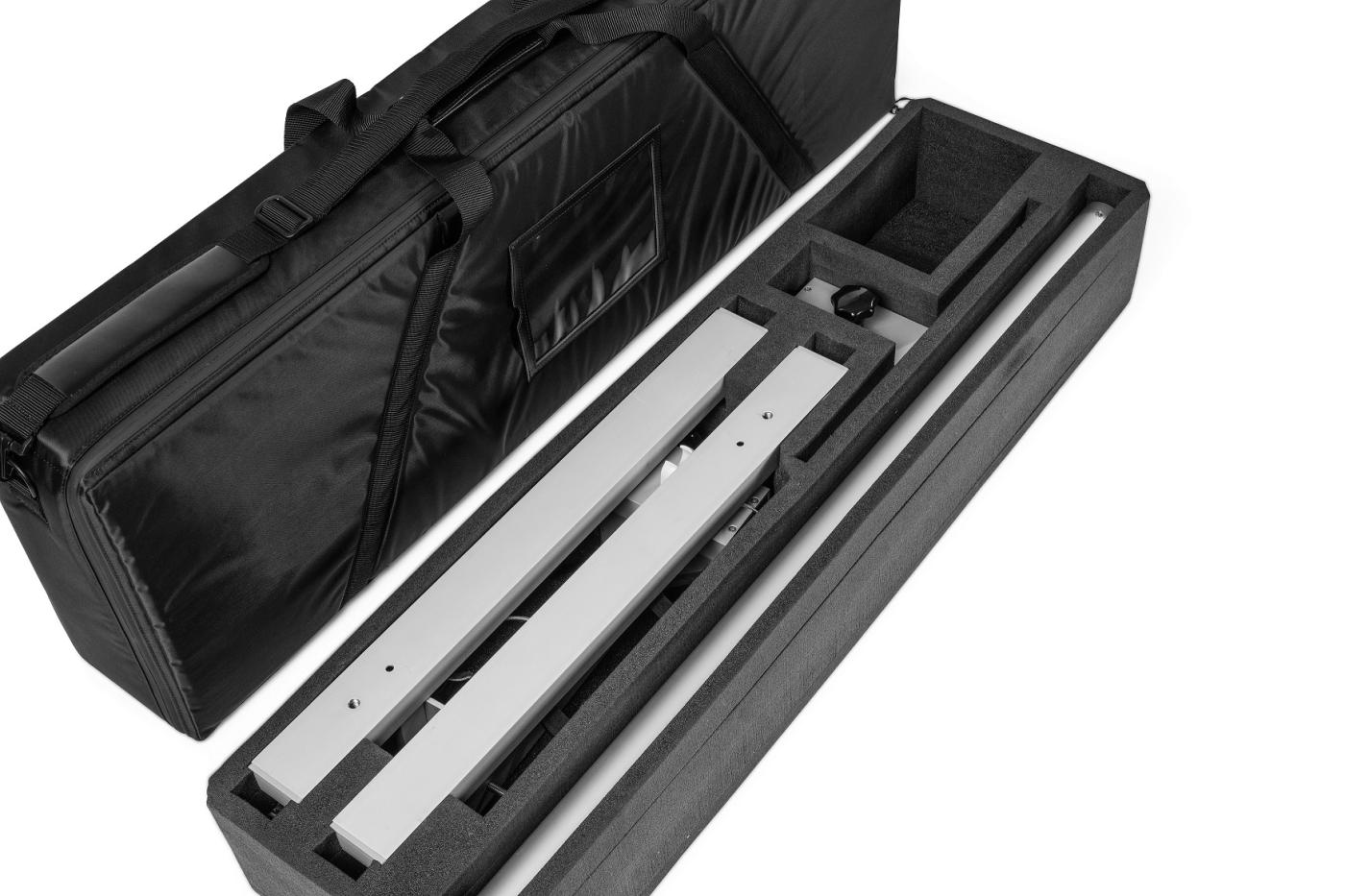

The trolley stand light for all GIERTH X-ray units up to 10 kg is the perfect choice for the mobile equine practice. It can be adjusted continuously and may be dismantled for transportation within very short time. The X-ray unit is mounted to the stand at a spring arm for ideal positioning. A transportation bag for the dismantled trolley stand is optionally available.

Short description:

  • robust and versatile
  • stand rod can be separated (each 100 cm)
  • base on 4 wheels
  • continuous height adjustment by spring arm
  • distance between spring arm and stand approx. 30 cm
  • X-ray device holder (height adjustable) :
    max. height: approx. 205 cm
    max. height for X-ray examinations: approx. 200 cm
    min. height for X-ray examinations: approx. 13.5 cm

Technical data:

Dimensions (L x W x H):
approx. 70 cm x 70 cm x 210 cm

Material:
Corrosion-resistant, anodized aluminum

Weight:
12,8 kg

Trolley stand light with spring arm
Trolley stand light with spring arm
Trolley stand light with spring arm

Click the images to enlarge. - Subject to technical changes.
