Trolley stand light with simplified fixing element

Trolley stand for all GIERTH X-ray units up to 10 kg

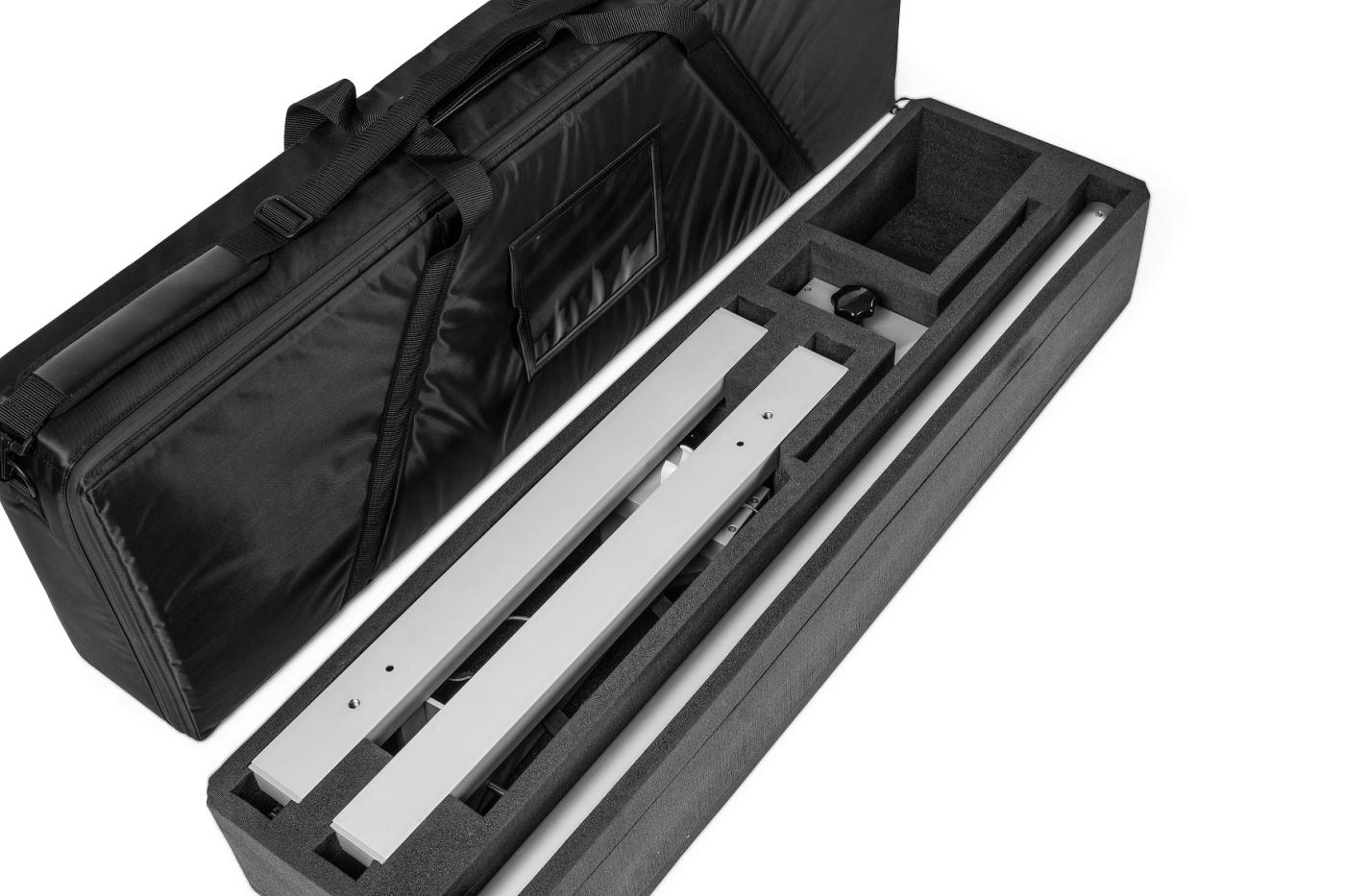

The trolley stand light for all GIERTH X-ray units up to 10 kg is the perfect choice for the mobile equine practice. It can be adjusted continuously and may be dismantled for transportation within very short time. The X-ray unit is mounted to the stand via a simplified fixing element. A transportation bag for the dismantled trolley stand is optionally available.

Short description:

  • robust and versatile
  • stand rod can be separated (each 100 cm)
  • base on 4 wheels
  • X-ray device holder (height adjustable) :
    max. height: approx. 205 cm
    max. height for X-ray examinations: approx. 175 cm
    min. height for X-ray examinations: approx. 8 cm

Technical data:

Dimensions (L x W x H):
approx. 70 cm x 70 cm x 210 cm

Material:
Corrosion-resistant, anodized aluminum

Weight:
9,1 kg

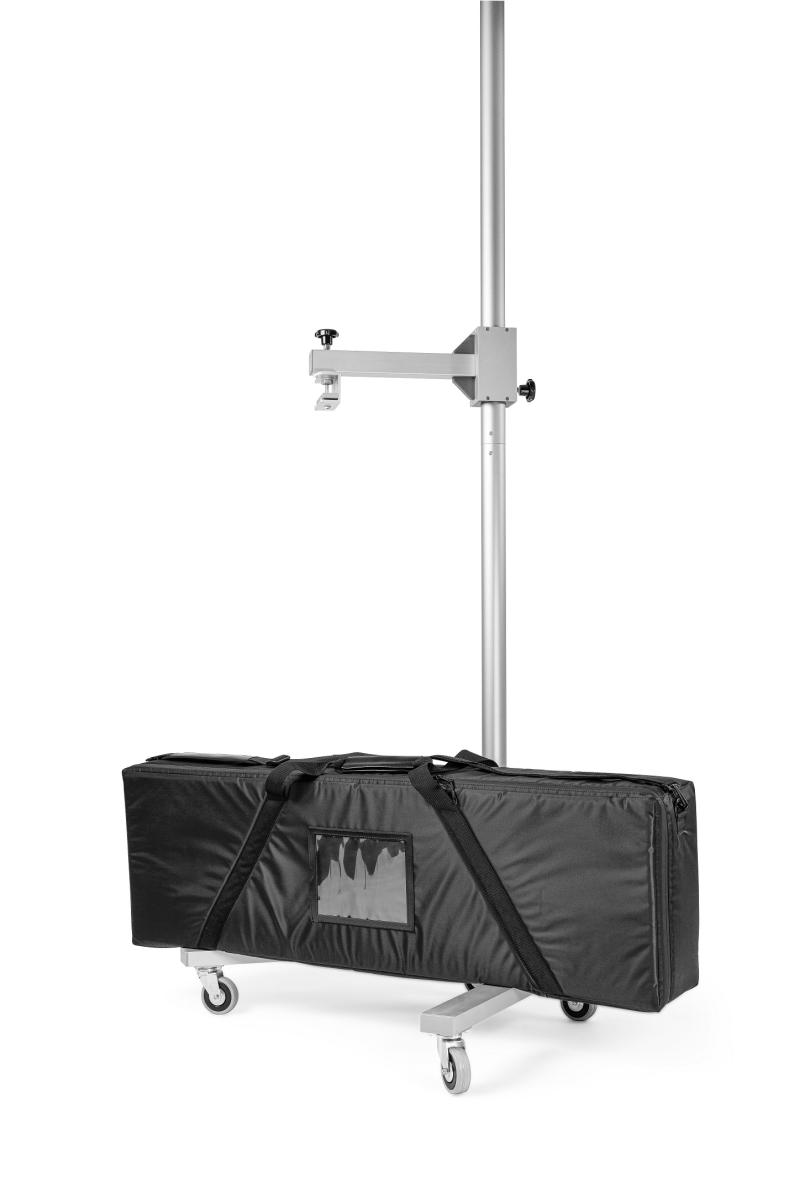

Trolley stand light with simplified fixing element
Trolley stand light with simplified fixing element

Click the images to enlarge. - Subject to technical changes.
