X-Ray can be so easy

X-ray stands / wall arms

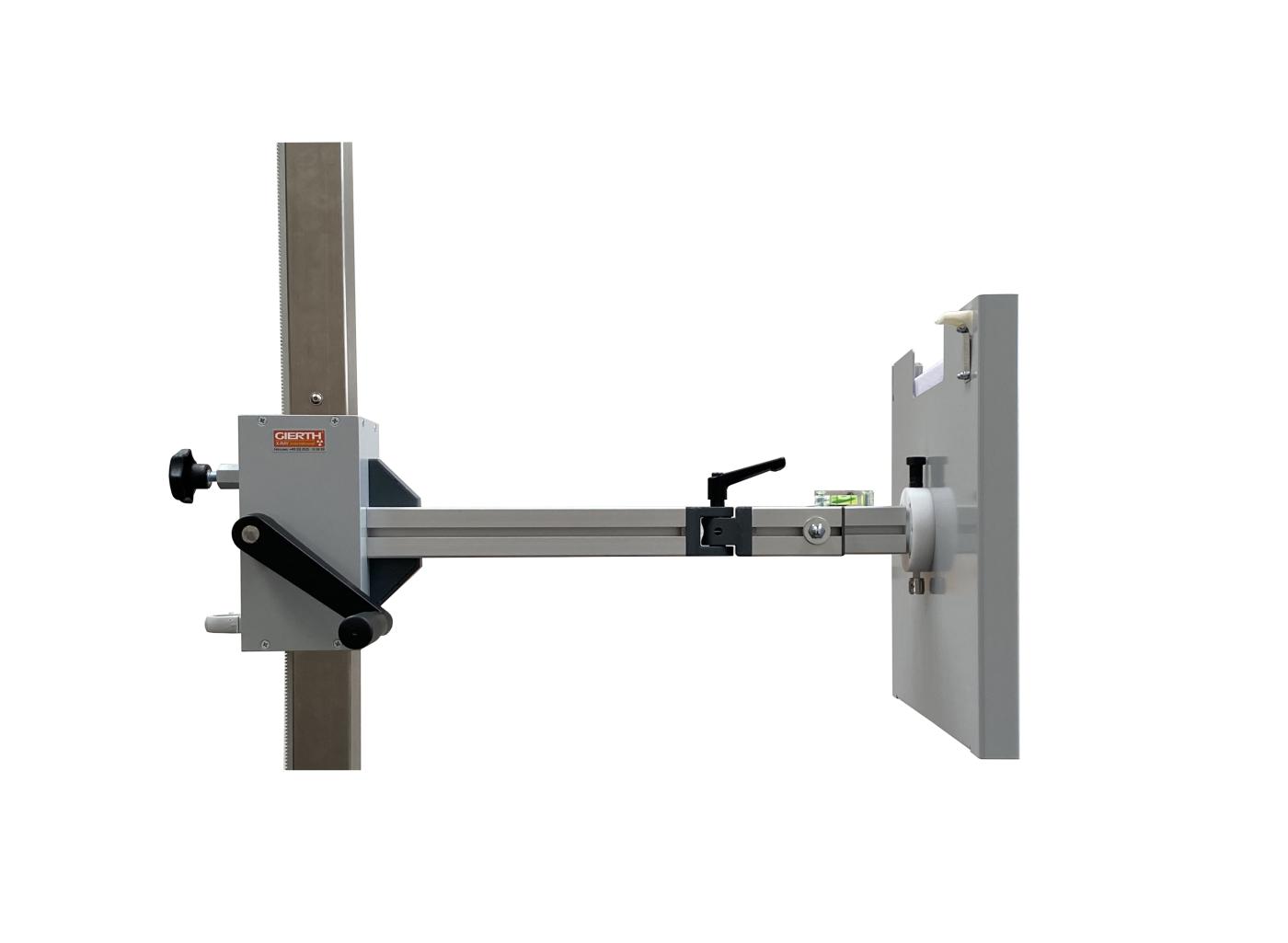

Trolley stand detector holder

For all cassette sizes

The trolley stand detector holder for all different detector sizes available at GIERTH is especially useful for X-ray examinations of the horse’s skull, neck, spine and thorax. The moveable stand holds detectors (with or without protection cases) and grid and allows flexible positioning of the detector by a vertical, horizontal and swivel joint and an integrated level.

Short description:

  • available for various detector sizes by GIERTH
  • minimum space requirements
  • stand rod can be separated
  • base on 4 wheels
  • distance between detector and stand approx. 52 cm
  • Detector holder (height adjustable):
    max. height for X-ray examinations: approx. 180 cm

Technical data:

Dimensions (L x W x H):
70 cm x 81 cm x 207.5 cm

Material:
Corrosion-resistant, anodized aluminum, stainless steel rod

Weight:
20 kg

Trolley stand detector holder
Trolley stand detector holder

Click the images to enlarge. - Subject to technical changes.
