X-Ray can be so easy

Digital radiography

SCOPE UltraLight

Light - Lighter - UltraLight

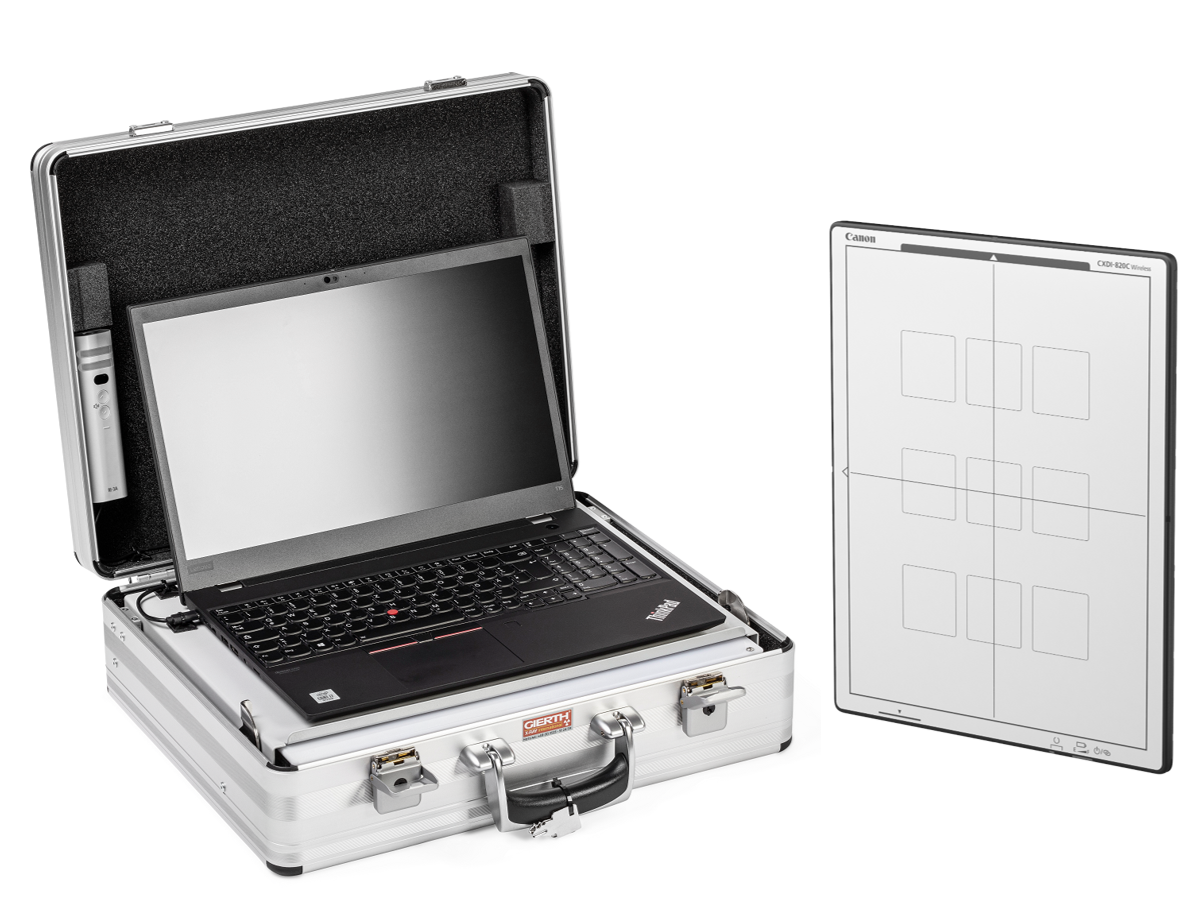

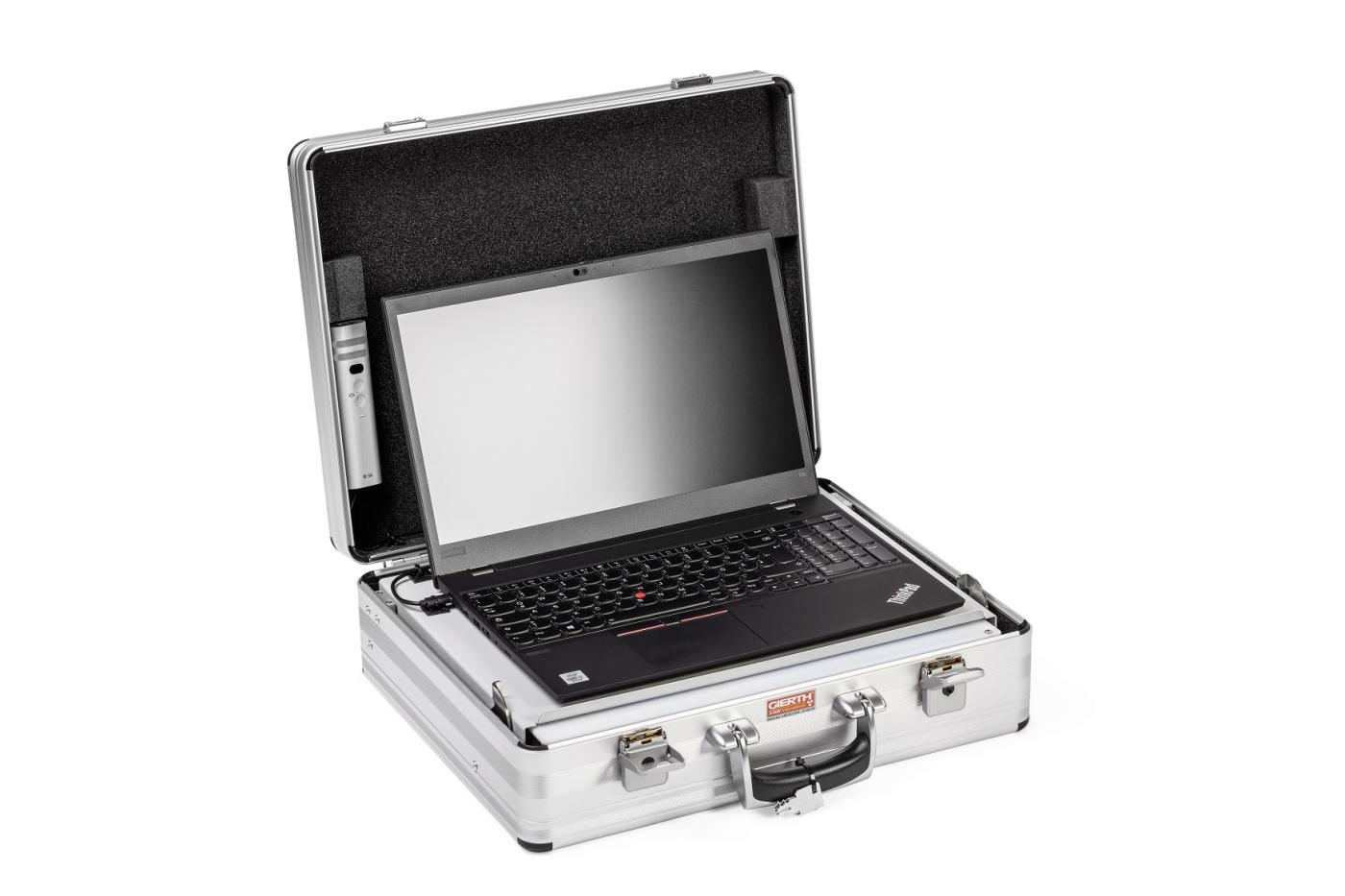

The SCOPE UltraLight is the successor model of our famous SCOPE-XXS series. With its new cover case – made of anodized aluminum and an ultra-flat notebook, the SCOPE UltraLight is an advanced high tech and stylish companion in the mobile veterinary practice. This solution is designed to be used with a CANON detector with an effective image area of 27 x 35 cm.

Same as the SCOPE TOUCH also the SCOPE UltraLight is equipped with a wireless detector by CANON that automatically detects the radiation. Therefore, the use of a trigger box (connection towards the X-ray unit) is no longer needed. Digital X-ray becomes faster and easier. Combined with the AI-based software module from CANON called Intelligent Noise Reduction it will provide radiologists high-quality diagnostic images containing significantly less grainy noise with no noticeable loss of detail. Intelligent Noise Reduction makes it possible to reduce the noise content without losing the fine details of the anatomy, even in low dose regions. This feature is only available for detectors of CANON’s Elite Series (CXDI-820C). Contact us for more information.

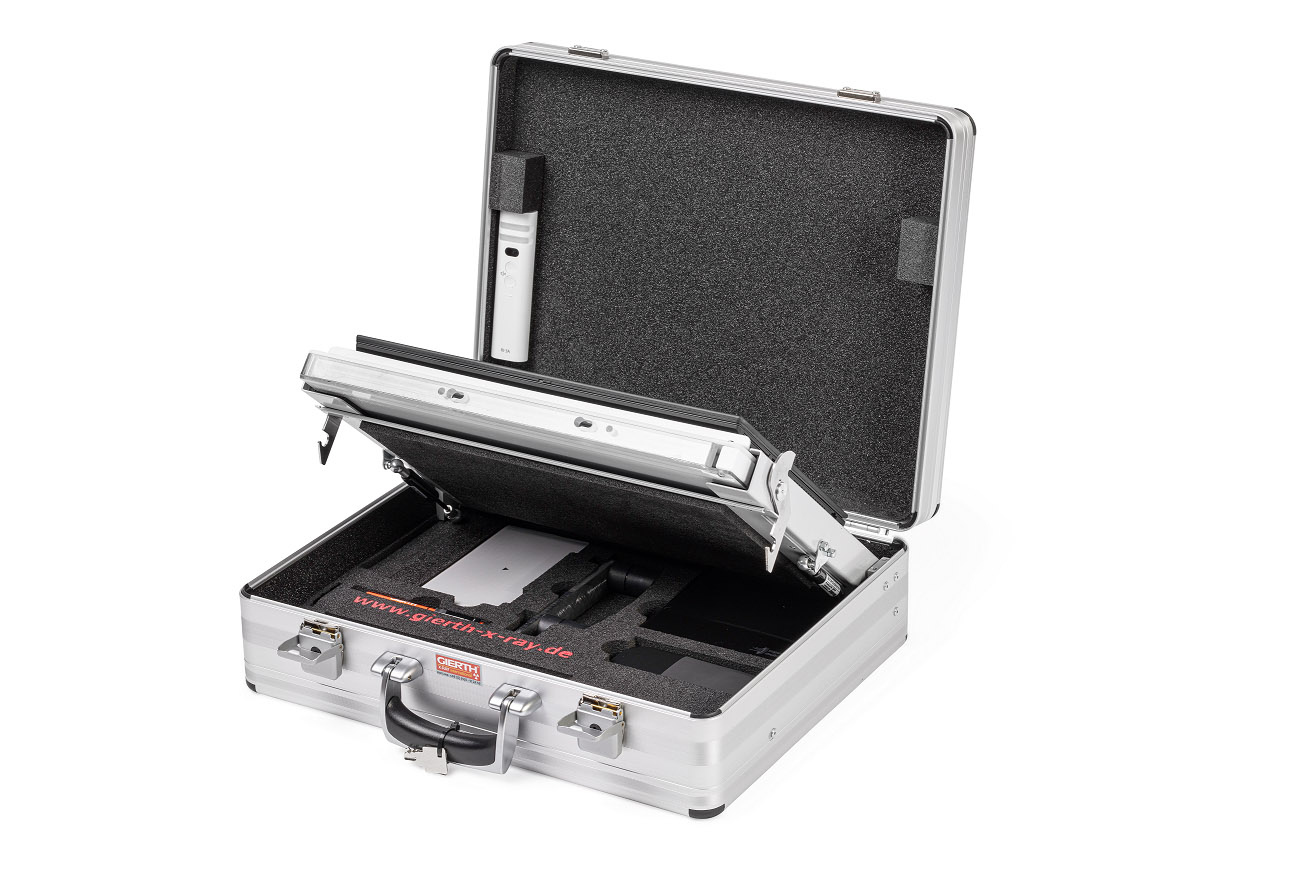

To protect the flat panel detector, the SCOPE UltraLight comes with a plexiglass panel protection box. This portable case solution is designed to be used with a CANON detector with an effective image area of 27 x 35 cm.

Short description:

  • Mobile, digital system, installed in a stylish case
  • High - resolution wireless CANON detector
  • High - quality, ultra-flat notebook
  • Total weight (including detector, batteries): 9 kg (with detector CXDI-820C)
  • User - friendly image acquisition software
  • Dimensions (closed) L x W x H: 45.5 cm x 40 cm x 14.5 cm

CXDI-820C Wireless

Ultralight AED wireless FPD. Tougher and more efficient than the former model! IP57 water and dust resistant. On-board image storage.

Scintillator Csl (Caesium Iodide)
Pixel size 125 µm
Effective image area 27 x 35 cm
External dimensions 31 x 38 cm
Preview image time 1 second
Weight 1.8 kg
Additional features Internal storage for up to 99 images
Built-in AEC assistance*

CXDI-803C Wireless

Light, wireless FPD. IP55 water and dust resistant.

Scintillator Csl (Caesium Iodide)
Pixel size 140 µm
Effective image area 27 x 35 cm
External dimensions 31 x 38 cm
Preview image time 1 second
Weight 2.1 kg
Additional features Time for ready in 4 seconds

*Depending on the X-ray generator

https://mce.canon/products/digital-radiography/cxdi-elite-series-flat-panel-detectors/
https://mce.canon/products/digital-radiography/cxdi-pro-series-flat-panel-detectors/

SCOPE UltraLight
SCOPE UltraLight
SCOPE UltraLight
SCOPE UltraLight

Click the images to enlarge. - Subject to technical changes.
