X-Ray can be so easy

Digital radiography

SCOPE TOUCH

A TOUCH better

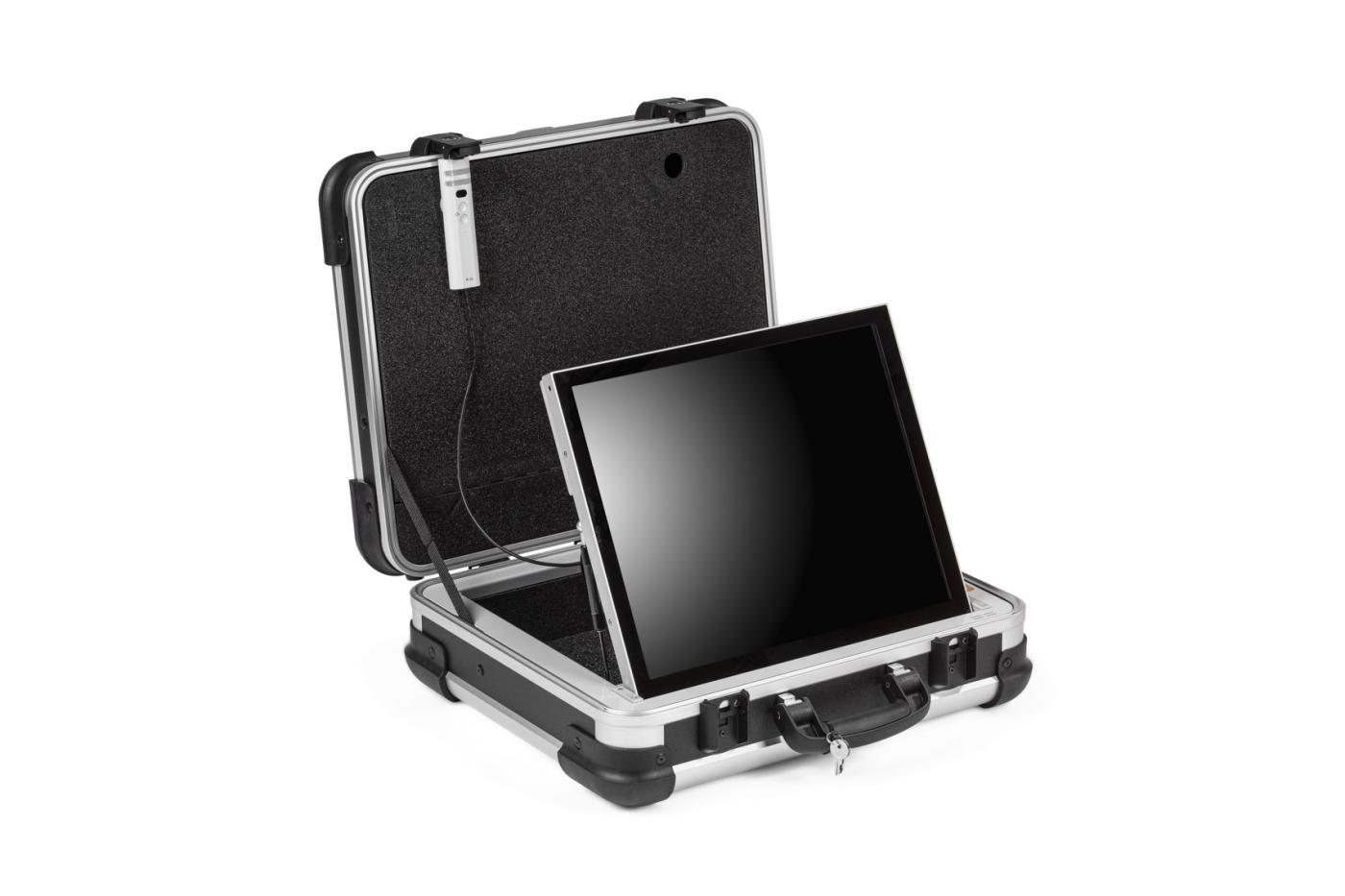

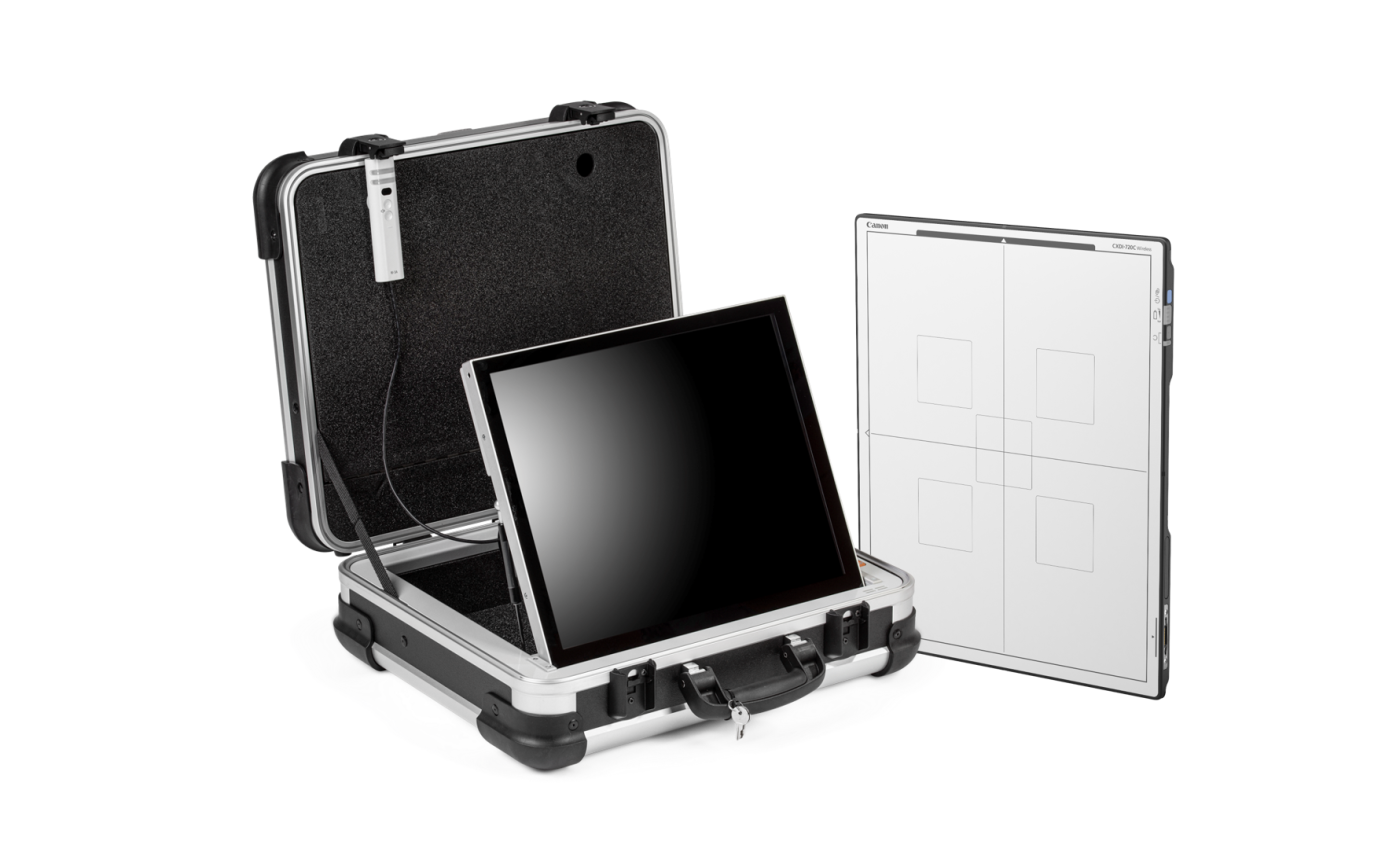

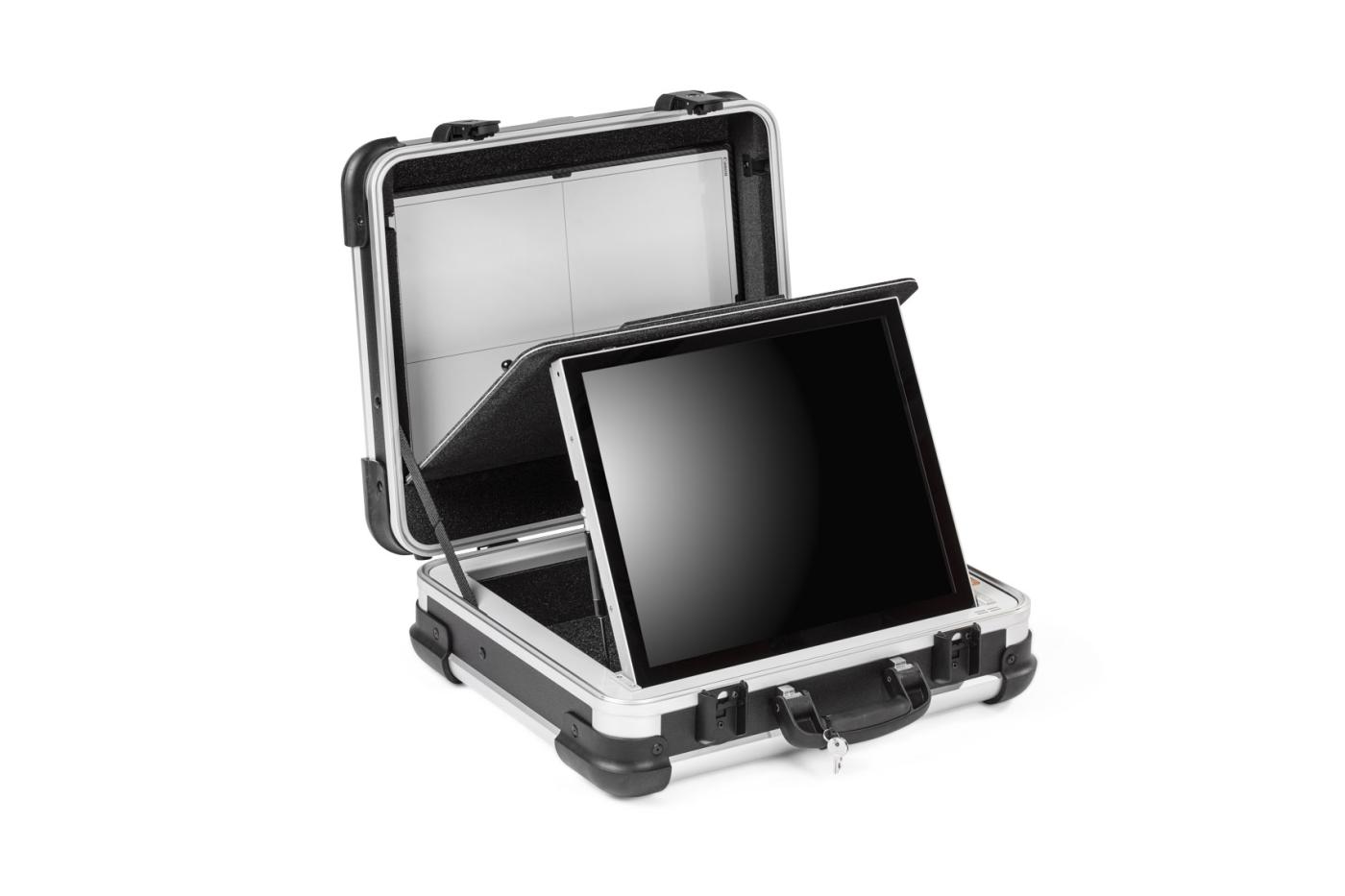

To meet the increasing requirements in the field of digital X-rays, the new SCOPE TOUCH was equipped with an extra-large TOUCH monitor, which allows evaluating of X-ray images on a new level. The practical, robust and compact case contains of – such as his preceding model – a high-quality Flat Panel detector by CANON.

Detectors CXDI-803C and CXDI-703C are not only wireless detectors, with light weight and high resolution, but are able to detect radiation independently and automatically, so there is no need to operate the system with a trigger box towards the X-ray unit. Model CXDI-820C and CXDI-720C are even more robust, water-resistant by IPP57 and have an internal storage of up to 99 images.

Combined with the well-known and user-friendly image acquisition software, the veterinarian can create excellent X-ray images, which are directly displayed at the 19-inch TOUCH monitor. To protect the flat panel detector, the SCOPE TOUCH comes with a plexiglass panel protection box.

Short description:

  • Mobile and flexible, as well as robust case for the creation of digital X-ray images
  • High - resolution wireless CANON detectors
  • High - quality, 19-inch MULTITOUCH monitor
  • Total weight (including detector and batteries): 17 kg
  • User - friendly image aqcuisition software
  • Dimensions (closed) L x W x H: 54 cm x 47 cm x 20.5 cm

CXDI-820C

Ultralight AED wireless FPD. Tougher and more efficient than the former model! IP57 water and dust resistant. On-board image storage.

Scintillator Csl (Caesium Iodide)
Pixel size 125µm
Effective image area 27 x 35 cm
External dimensions 31 x 38 cm
Preview image time 1 second
Weight 1.8 kg
Additional features Internal storage for up to 99 images
Built-in AEC assistance*

CXDI-803C

Light, wireless FPD. IP55 water and dust resistant.

Scintillator Csl (Caesium Iodide)
Pixel size 140µm
Effective image area 27 x 35 cm
External dimensions 31 x 38 cm
Preview image time 1 second
Weight 2.1 kg
Additional features Time for ready in 4 seconds

CXDI-720C

Ultralight AED wireless FPD. Tougher and more efficient than the former model! IP57 water and dust resistant. On-board image storage.

Scintillator Csl (Caesium Iodide)
Pixel size 125µm
Effective image area 35 x 43 cm
External dimensions 38 x 46 cm
Preview image time 1 second
Weight 2.5 kg
Additional features Internal storage for up to 99 images
Built-in AEC assistance*

CXDI-703C

Light, wireless FPD. IP55 water and dust resistant.

Scintillator Csl (Caesium Iodide)
Pixel size 140µm
Effective image area 35 x 43 cm
External dimensions 38 x 46 cm
Preview image time 1 second
Weight 2.9 kg
Additional features Time for ready in 4 seconds

* Depending on the X-ray generator

https://mce.canon/products/digital-radiography/cxdi-elite-series-flat-panel-detectors/
https://mce.canon/products/digital-radiography/cxdi-pro-series-flat-panel-detectors/

SCOPE TOUCH
SCOPE TOUCH
SCOPE TOUCH

Click the images to enlarge. - Subject to technical changes.
