X-Ray can be so easy

Dental Radiography – Imaging systems for veterinary supplies

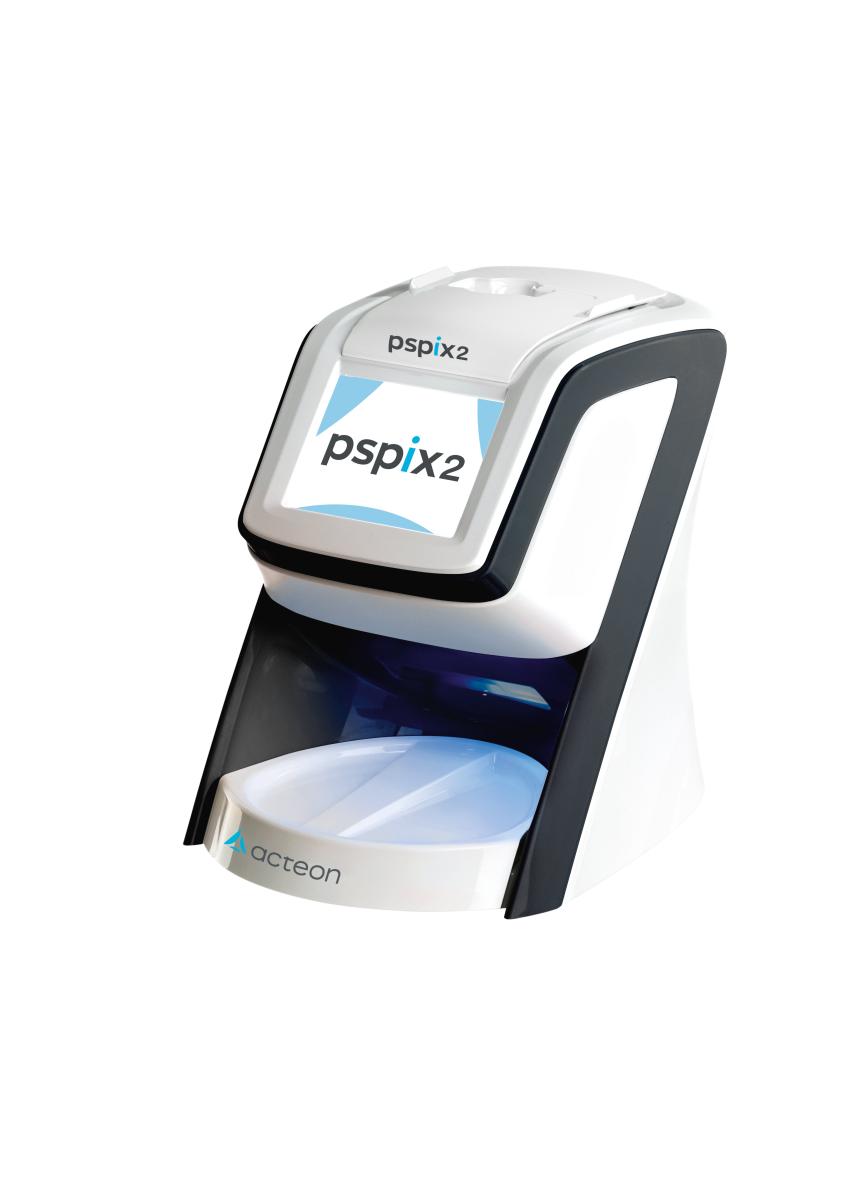

pspix2 – Easy to handle with a compact design

Efficient workflow

PSPIX² enables a streamlined workflow with image creation in just a few seconds: Simply insert your imaging plates and PSPIX2 takes care of the rest!

Sharp contrasts for more reliable diagnosis

Based on modern microfiber optics that have a wide spectrum, PSPIX2 displays the different anatomical tooth structures such as bones, roots, pulp, etc. on the image with extreme precision.

Hygiene – PSPIX² exceeds your expectations in terms of hygiene.

Autoclavability

Only PSPIX² provides such a high level of protection.

  • PSPIX² has removable parts which comply with thermal washer-disinfectors, the latest disinfection standards.
  • PSPIX² offers unique autoclavable parts to eliminate risk of infection.

Optimal hygiene barrier

  • Hygiene is at the core of each operating step of PSPIX².
  • Hygiene bags and covers ensure high degree of protection against cross-contamination.
  • The touchscreen stylus also allows a hygienic use

Technical specifications:

Calculated Resolution: ≥ 20 lp/mm
Real resolution: ≥ 14 lp/mm
Scan time (fast mode): 1,6 – 2,7 sec.
Scan time (high definition mode): T2,1 – 3,6 sec.
Connection: Ethernet RJ-45
Weight: 2,6 kg
Dimensions (LxWxH): 154 x 204 x 193 mm
Operating voltage : 100 ~ 240 V, 50/60 Hz

Windows® recommended configuration:

Operating system: Windows® 10, Processor: Quadcore 26 Ghz, Ram:8 GB, Hard disk: 1 TB, USB ports: 4 USB2 Hi-Speed ports, Graphic card: Dedicated graphics card with at least 1 GiB memory, USB Chipset: Intel® or NEC® / RENESAS®, Screen resolution:1920 x 1080 for optimal planning or better, Ethernet board: 1 Gbps

Windows® minimum configuration required:

Operating system: Windows® 7, Processor: Quadcore 26 Ghz, RAM 4 GB, Hard disk: 300 GB, USB ports: 2 USB 20 Hi-Speed ports, Graphic card: OpenGL 21 or better alternatively DirectX 9 or 11 Graphics Device, USB Chipset: Intel® or NEC® / RENESAS®, Screen resolution: 1600 x 1024, Ethernet board: 100 Mbps - 1 Gbps

Mac® recommended configuration:

Computer: iMac® 27”, Operating system: 1014 Mojave, Processor: Quadcore 26 Ghz, RAM: 8 GB, Ethernet board: 1 Gbps

Mac® minimum configuration required:

Computer: MacBook® Pro 133” or iMac® 215”, Operating system: 1012 Sierra, Processor: Quadcore 26 Ghz, RAM: 4 GB, Ethernet board: 1 Gbps

Various sizes are available depending on patient morphology and clinical applications.

Medium sized and large dog: Size 2/3/4, intraoral

Small cats and dogs: Size 0/1, intraoral and Size 2/3/4, intra- or extraoral

Cats and very small dogs: Size 0/1, intra- or extraoral and Size 2/3/4, extraoral

Rabbits and rodents: Size 0, intraoral and Size 2/3/4, extraoral

pspix2 – Easy to handle with a compact design

Click the images to enlarge. - Subject to technical changes.
