GIERTH TR90/30 peak

Most advanced, lightweight portable X-ray unit

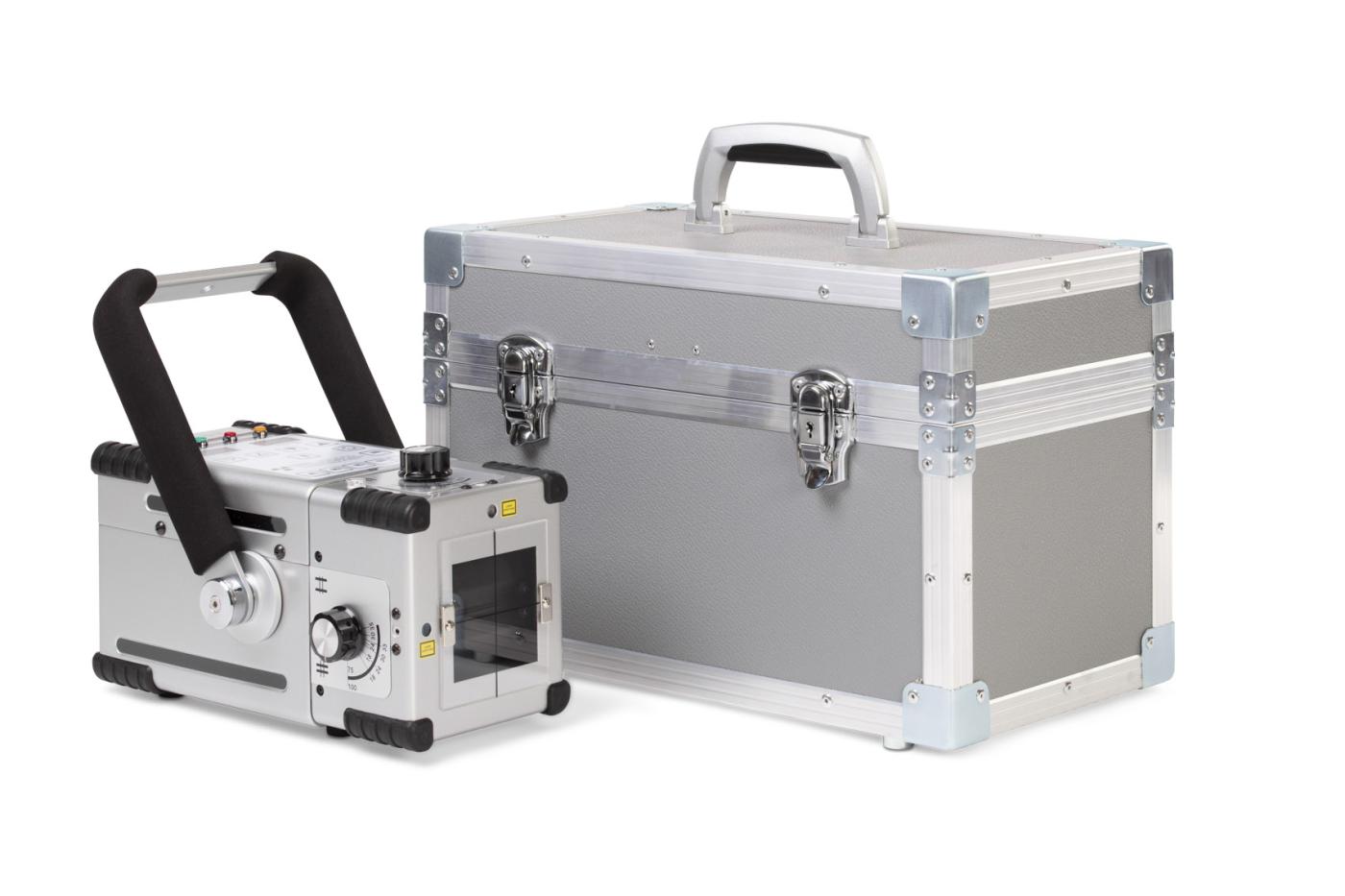

The GIERTH TR90/30peak is the perfect solution for the mobile practice. With the TR90/30peak high quality X-ray images are no longer a problem. The user friendly operation, the integrated DR interface and the extremely low weight make it the favourite unit for equine practitioners. The GIERTH TR90/30peak comes in a practical transport case.

Short description

  • High – frequency X-ray generator with full bridge inverter system
  • Only weighs 6.5 kg
  • Serial interface for connection with digital radiography systems
  • Collimator with scale to adjust the size of the light – radiation field
  • Collimator light can be activated via the hand switch
  • Acustic and optical timer signal
  • 5 memory buttons
  • Dual laser pointer
  • Digital display „X-RAY“, „READY“ and „ERROR“
  • Tape measure for film – focal spot distance
  • Aluminium casing
  • Robust and innovative impact resistant construction

Technical data

Inverter frequency: 50 kHz
Power Requirement: 1.8 kVA
Output in 2-kV Steps: 40 – 60 kV = 30 mA (max.)
62 – 70 kV = 25 mA (max.)
72 – 80 kV = 20 mA (max.)
82 – 90 kV = 15 mA (max.)
X-ray tube: KL30
Focal spot: 0.8 mm x 0.8 mm
Dimensions L x W x H: 295 mm x 188 mm x 170 mm
Total filtration: 2.7 mmAl

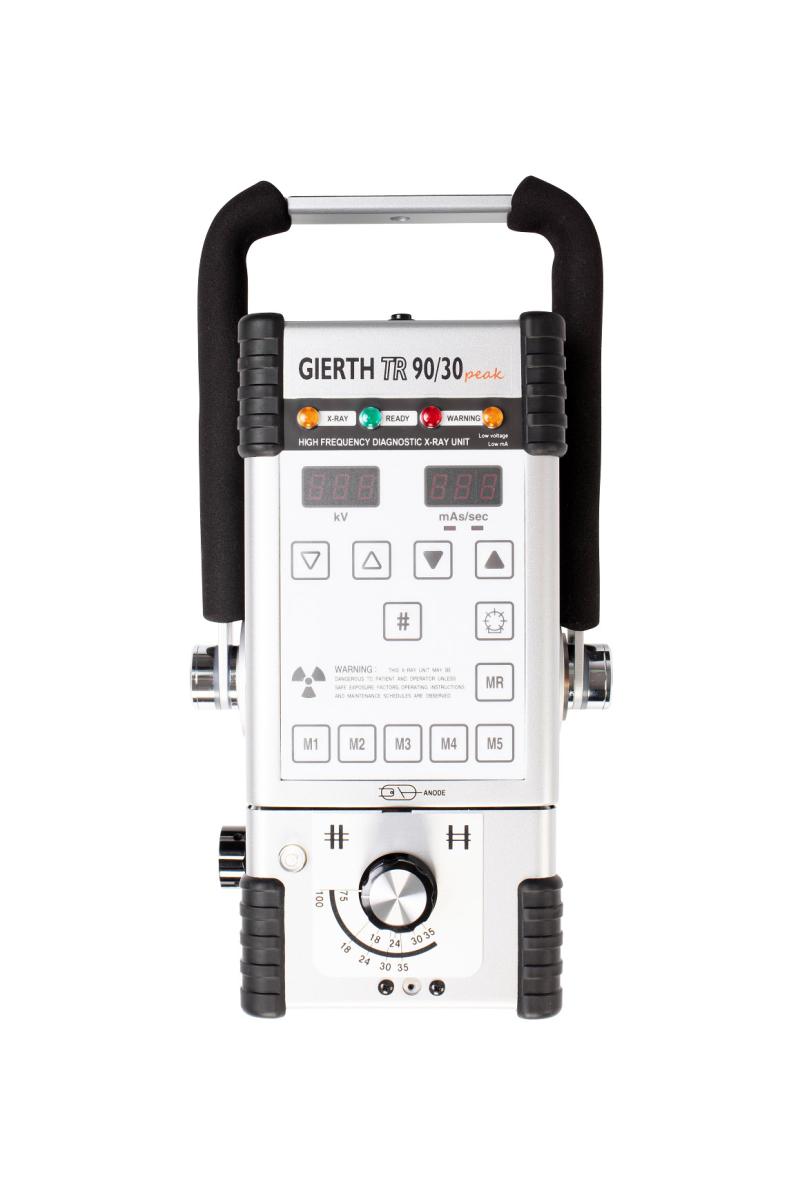

GIERTH TR90/30 peak

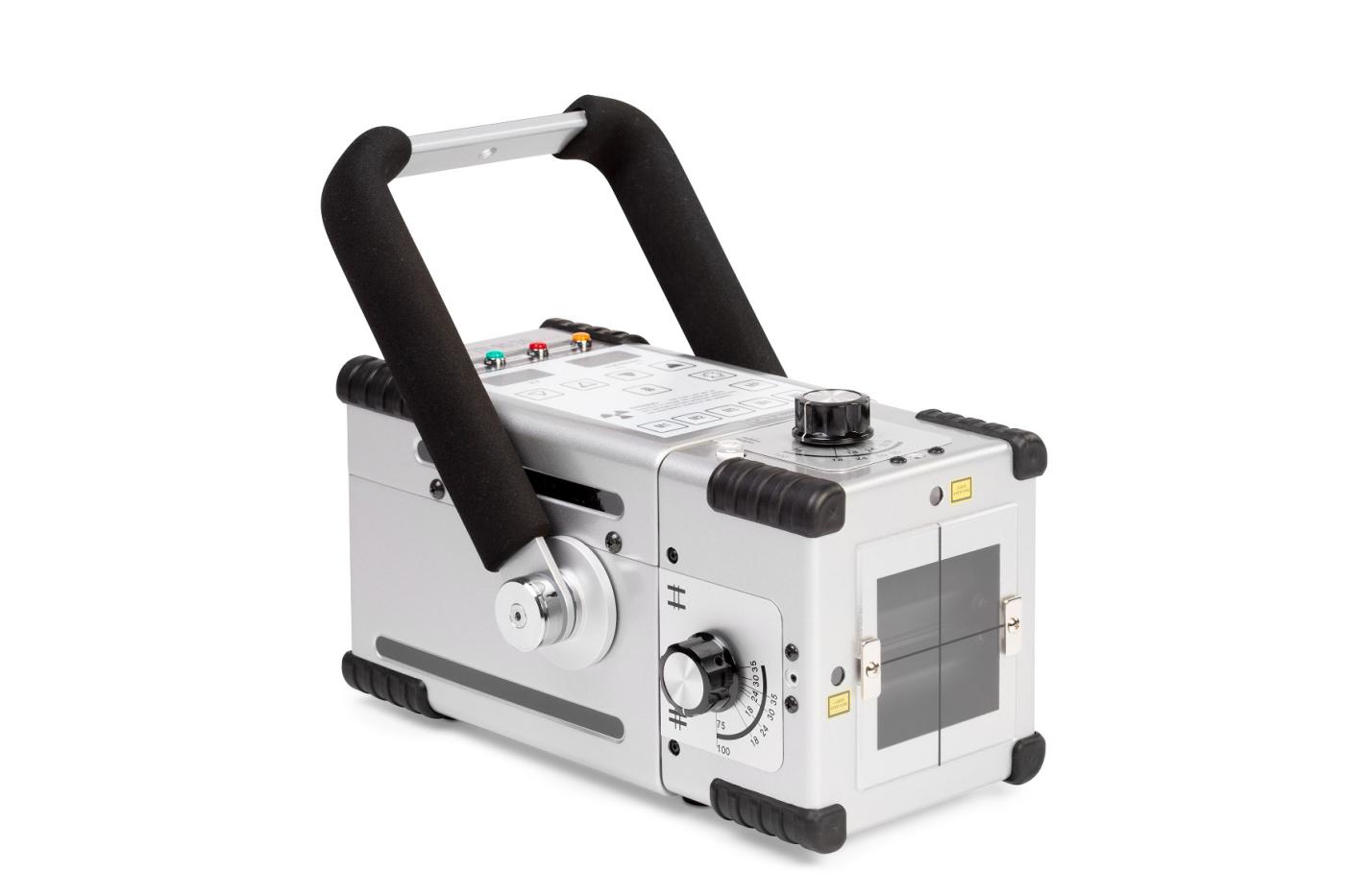

GIERTH TR90/30 peak
GIERTH TR90/30 peak

Click the images to enlarge. - Subject to technical changes.
