Portable X-ray devices from MIKASA X-Ray exclusively available at GIERTH X-Ray

Since 1977, GIERTH X-Ray has been the exclusive international distributor for MIKASA X-Ray's portable X-ray units in Europe (excluding Great Britain). Over the past decades, many new innovations in portable X-ray equipment have emerged through joint development efforts, and a close collaboration has developed over the years, allowing us to further develop our expertise and thus act quickly.

GIERTH TR90/20 Battery

Boundless freedom during your X-Ray examination – the powerful battery unit

The GIERTH TR90/20 Battery is the ideal companion for the use in remote areas or when working with horses. No disturbing cables, but instead of that the comfortable handling and the possibility to do up to 640 exposures with one battery charge, show its unrestricted mobility. GIERTHs digital systems SCOPE TOUCH or SCOPE UltraLight including one of CANONs high-resolution detectors are the perfect complements for the outdoor use. The GIERTH TR90/20 Battery comes in a practical transport case.

Short description

  • Battery operated high frequency X-ray unit
  • Weighing only 7.2 kg (battery included)
  • Up to 640 exposures with one battery charge
  • Operator friendly and centrally balanced
  • Charging time approximately 240 minutes
  • Serial interface for connection with digital radiography systems
  • Collimator with scale to adjust the size of the light – radiation field
  • Collimator light can be activated via the hand switch
  • Display for battery status
  • Acustic and optical timer signal
  • 5 memory buttons
  • Dual laser pointer
  • Digital display „X-RAY“, „READY“ and „ERROR“
  • Tape measure for film – focal spot distance
  • Aluminium casing
  • Robust and solid design

Technical data

Inverter frequency: max. 150 kHz
Power Requirement: 1.35 kVA
Output in 2-kV Steps: 40 – 60 kV = 20 mA (max.)
62 – 80 kV = 15 mA (max.)
82 – 90 kV = 10 mA (max.)
82 – 90 kV = 15 mA (max. high power mode)
X-ray tube: Toshiba D - 0814M
Focal spot: 0.8 mm x 0.8 mm
Type of battery Lithium – Ion Battery
Dimensions L x W x H: 265 mm x 220 mm x 180 mm
Total filtration: ≥2.5 mmAl at 76kV

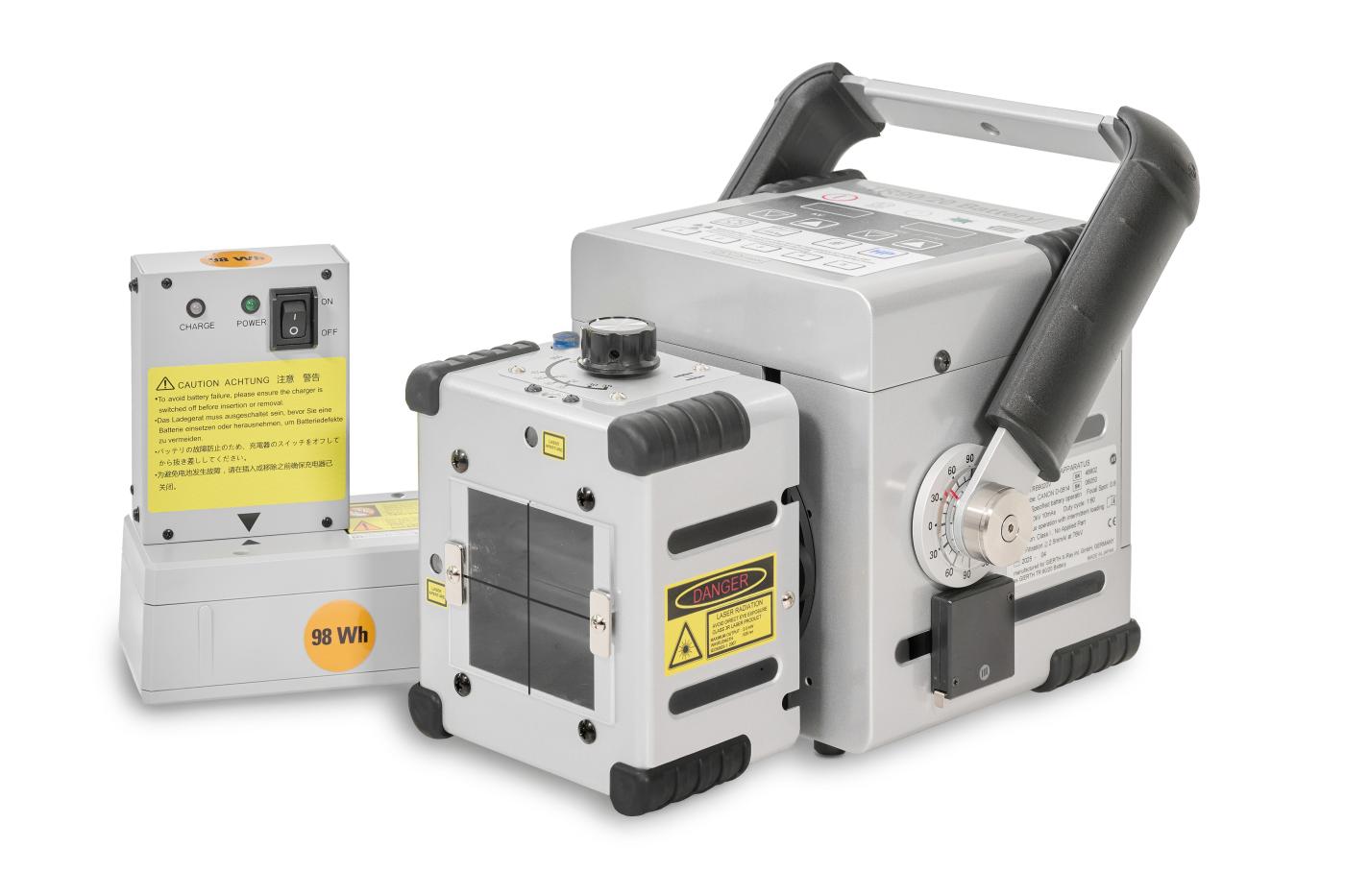

GIERTH TR90/20 Battery

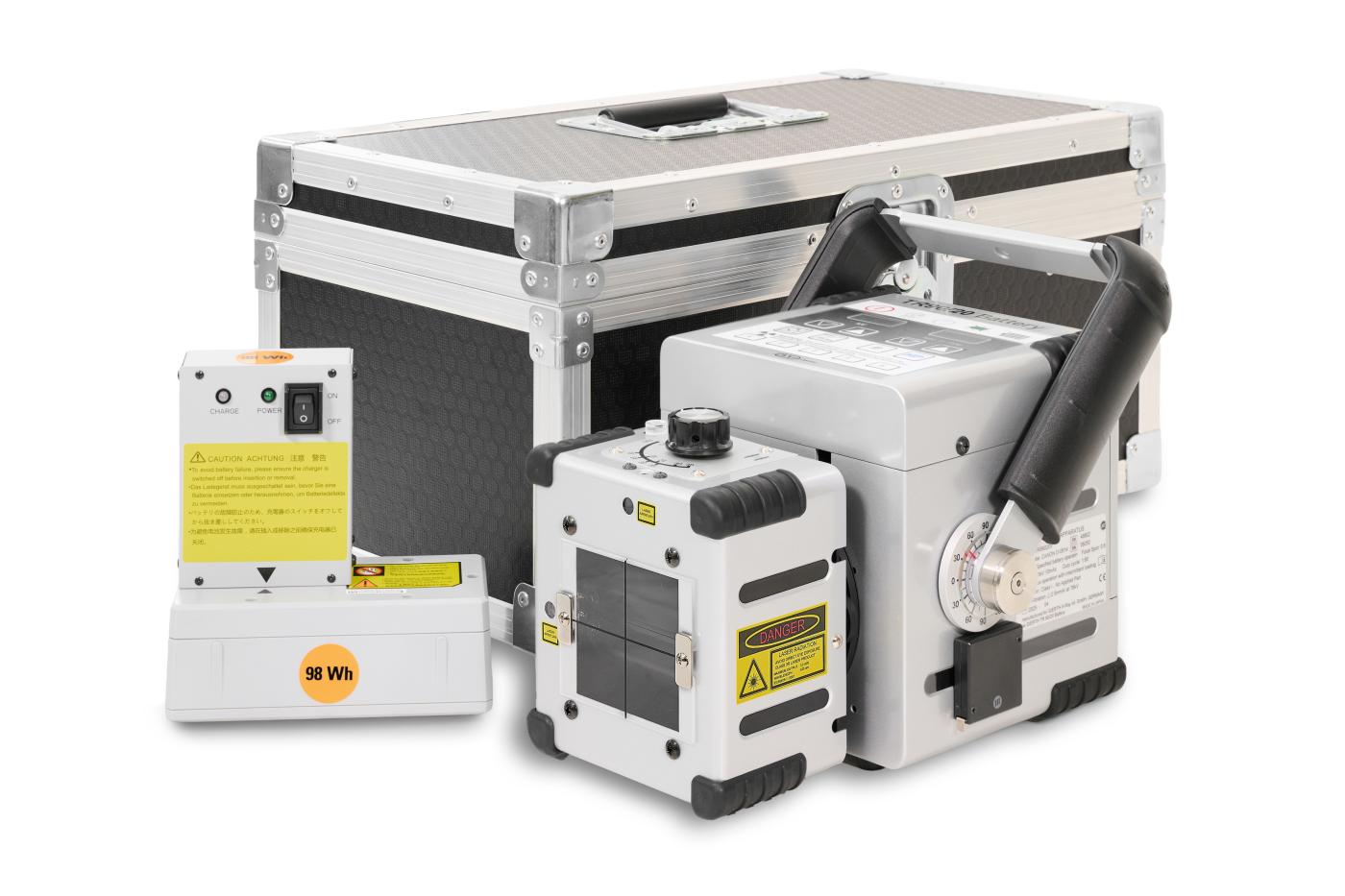

GIERTH TR90/20 Battery

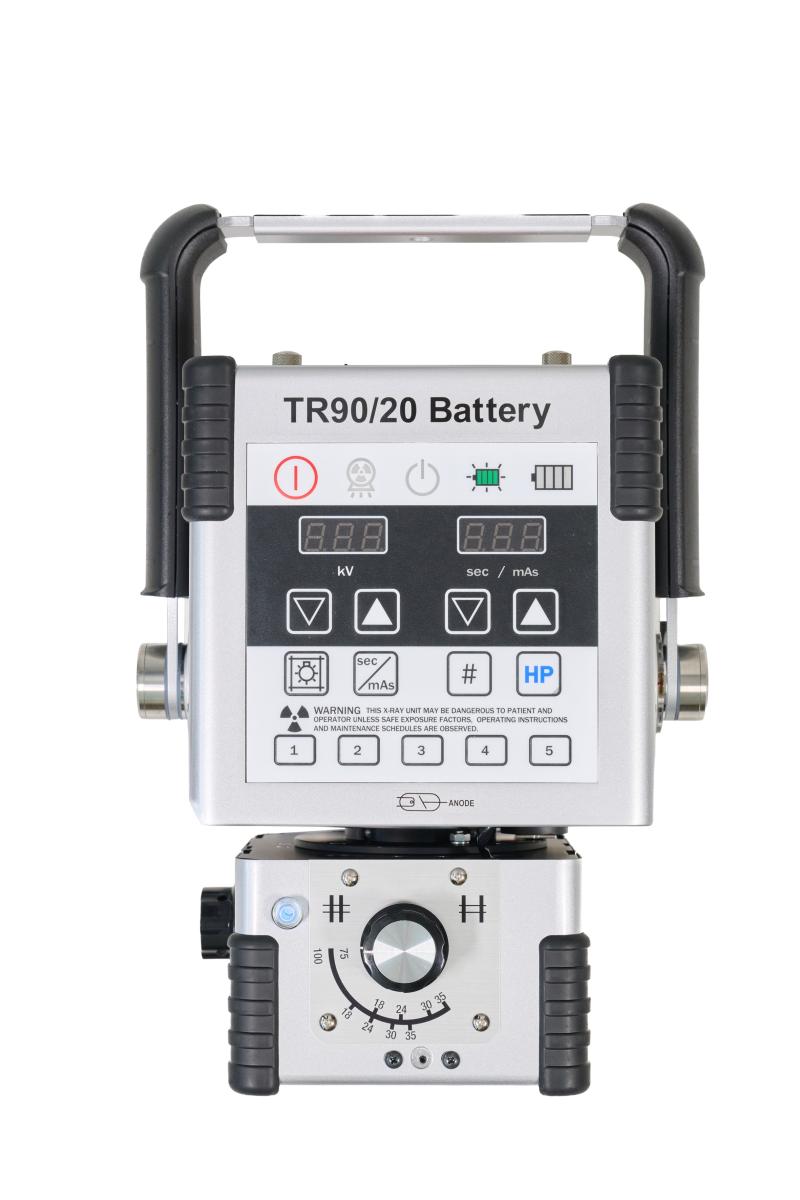

GIERTH TR90/20 Battery

Click the images to enlarge. - Subject to technical changes.
