GIERTH TR80/20

The X-Ray unit for the equine practitioner

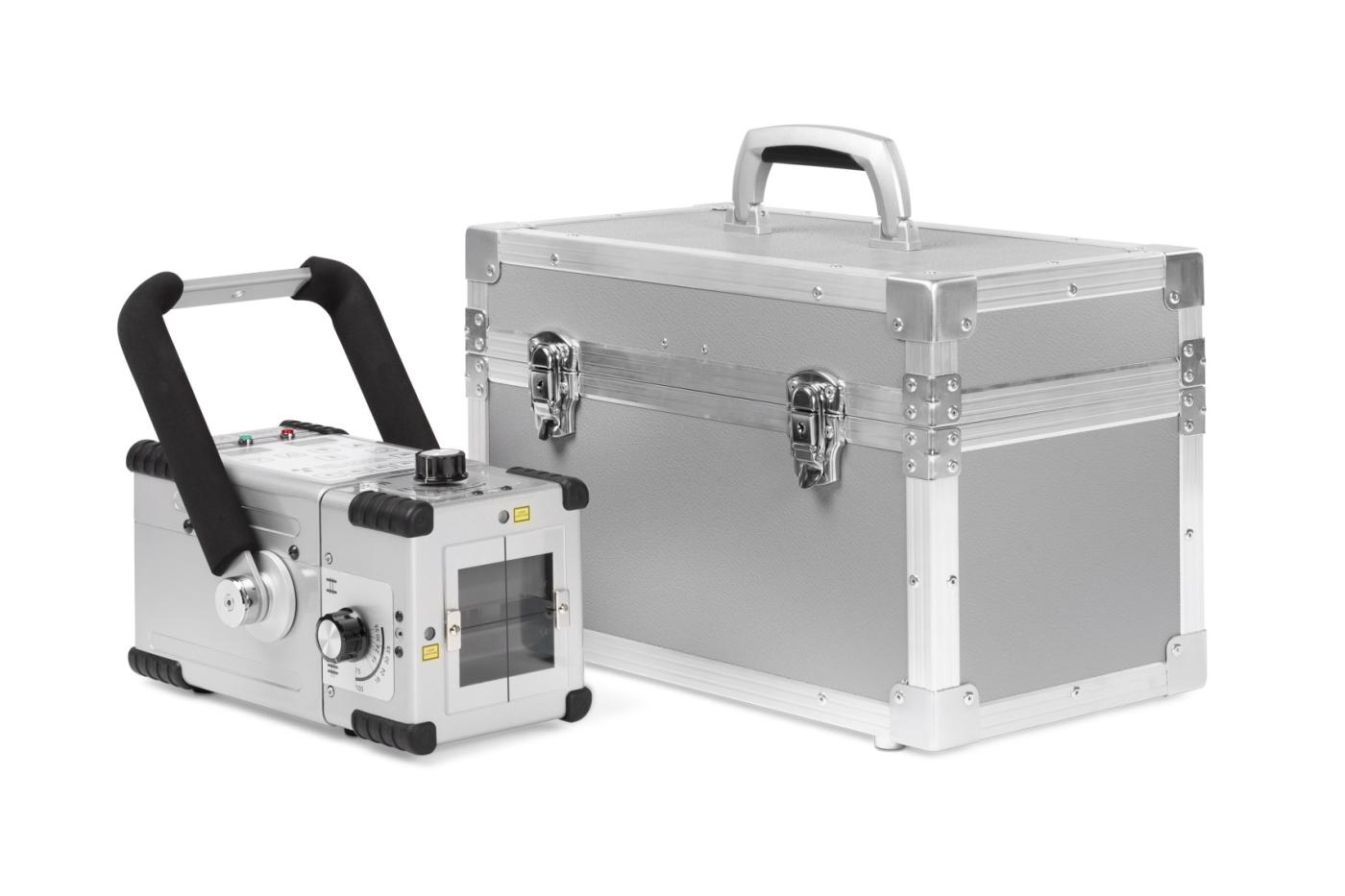

The GIERTH TR80/20 features a convincing combination of extremely low weight and optimum handling especially for radiographic examinations of horses. It is quickly ready for use and with the serial DR interface, the X-ray unit can be connected to any digital system without problems. The GIERTH TR80/20 comes with a practical transport case.

Short description

  • High – Frequency X-ray unit with full bridge inverter system
  • Only 5.9 kg, max. potential 20 mA at 50 - 80 kHz
  • Serial interface for connection with digital radiography systems
  • Collimator with scale to adjust the size of the light – radiation field
  • Collimator light can be activated via the hand switch
  • Acustic and optical timer signal
  • 5 memory buttons
  • Dual laser pointer
  • Digital display „X-RAY“, „READY“ and „ERROR“
  • Tape measure for film – focal spot distance
  • Aluminium casing
  • Modern design

Technical data

Construction: Monobloc – high frequency generator with full bridge inverter system
Inverter frequency 60 kHz
Output: 50 – 80 kV = 20 mA (max.)
Power requirement: 1.2 kVA
X – ray tube: D – 0813
Serial interface: for connection with any digital system
Focal spot: 0.8 mm x 0.8 mm
Weight: 5.9 kg including collimator
Dimensions L x W x H: 295 mm x 188 mm x 170 mm
Total filtration: 3.0 mm Al

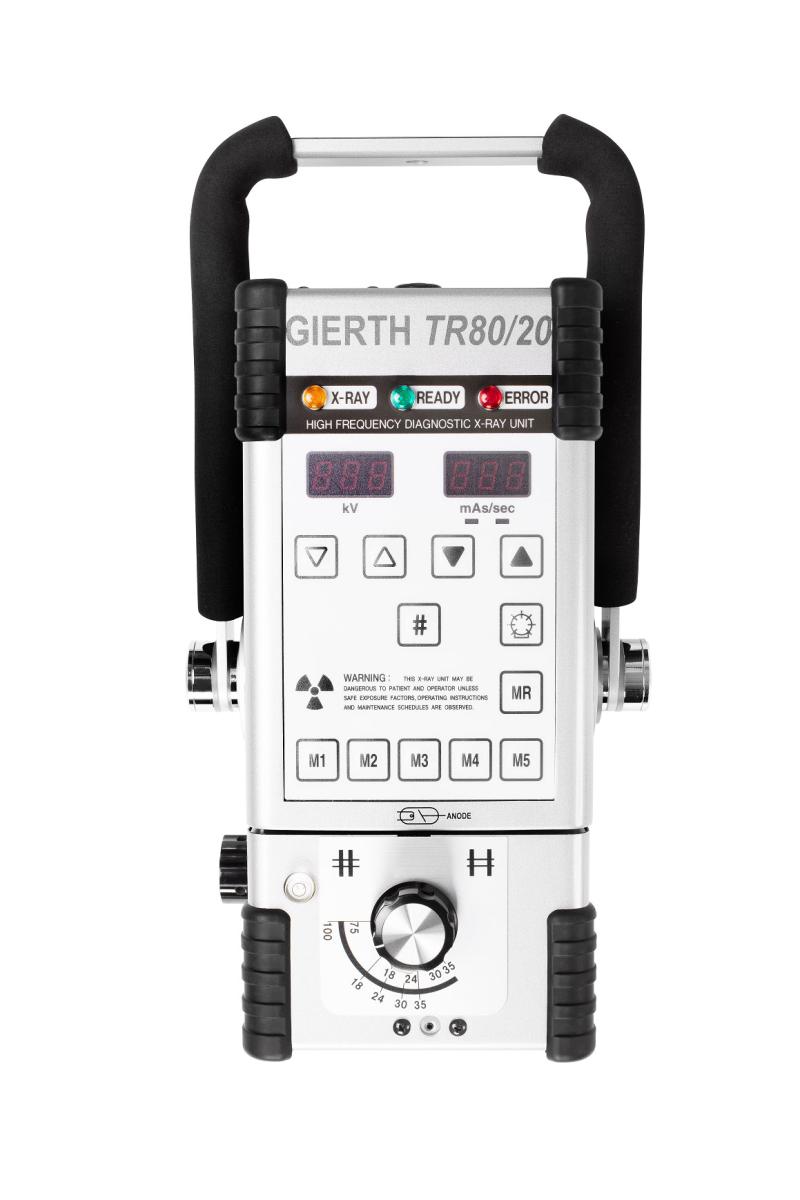

GIERTH TR80/20

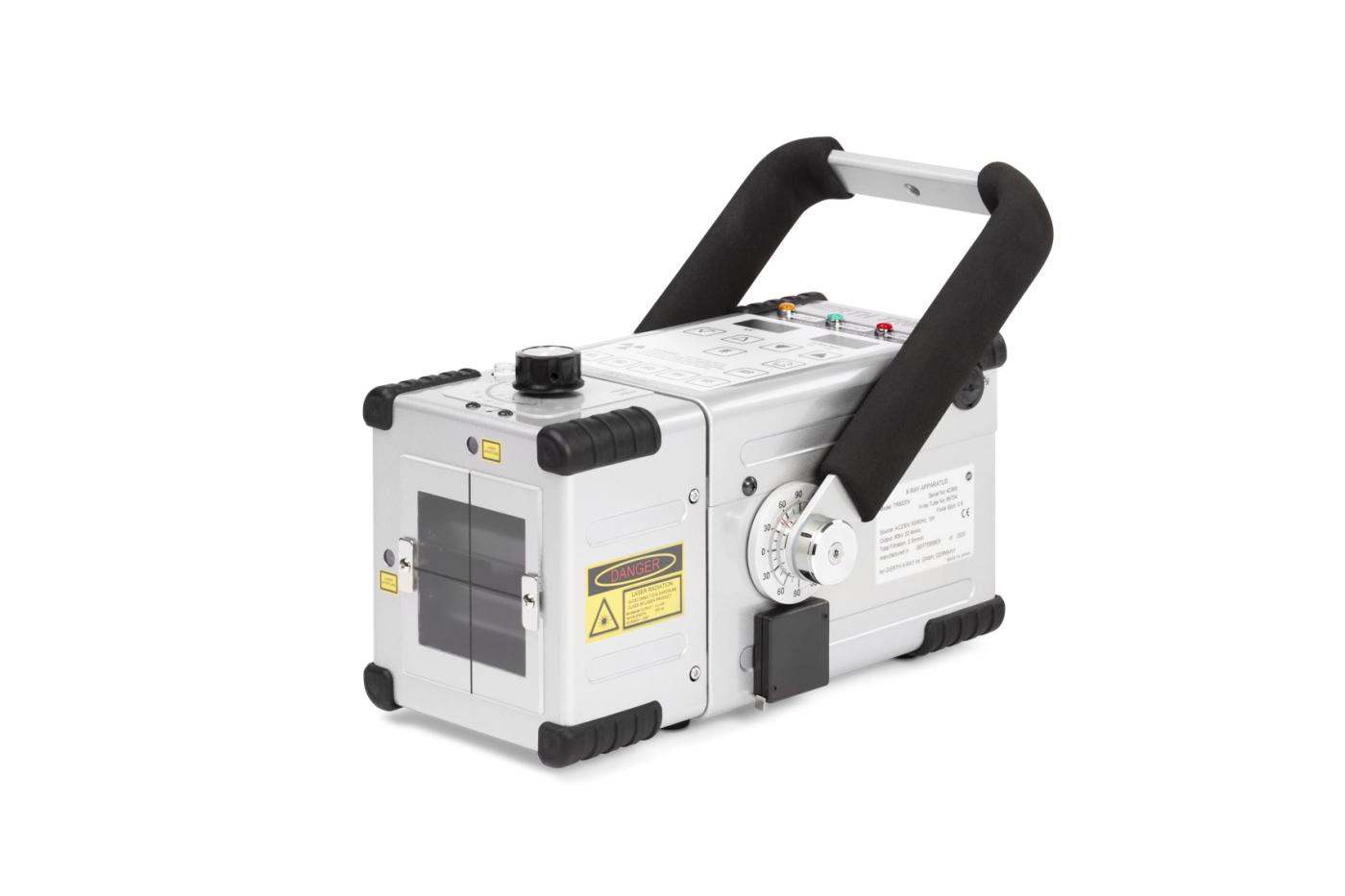

GIERTH TR80/20

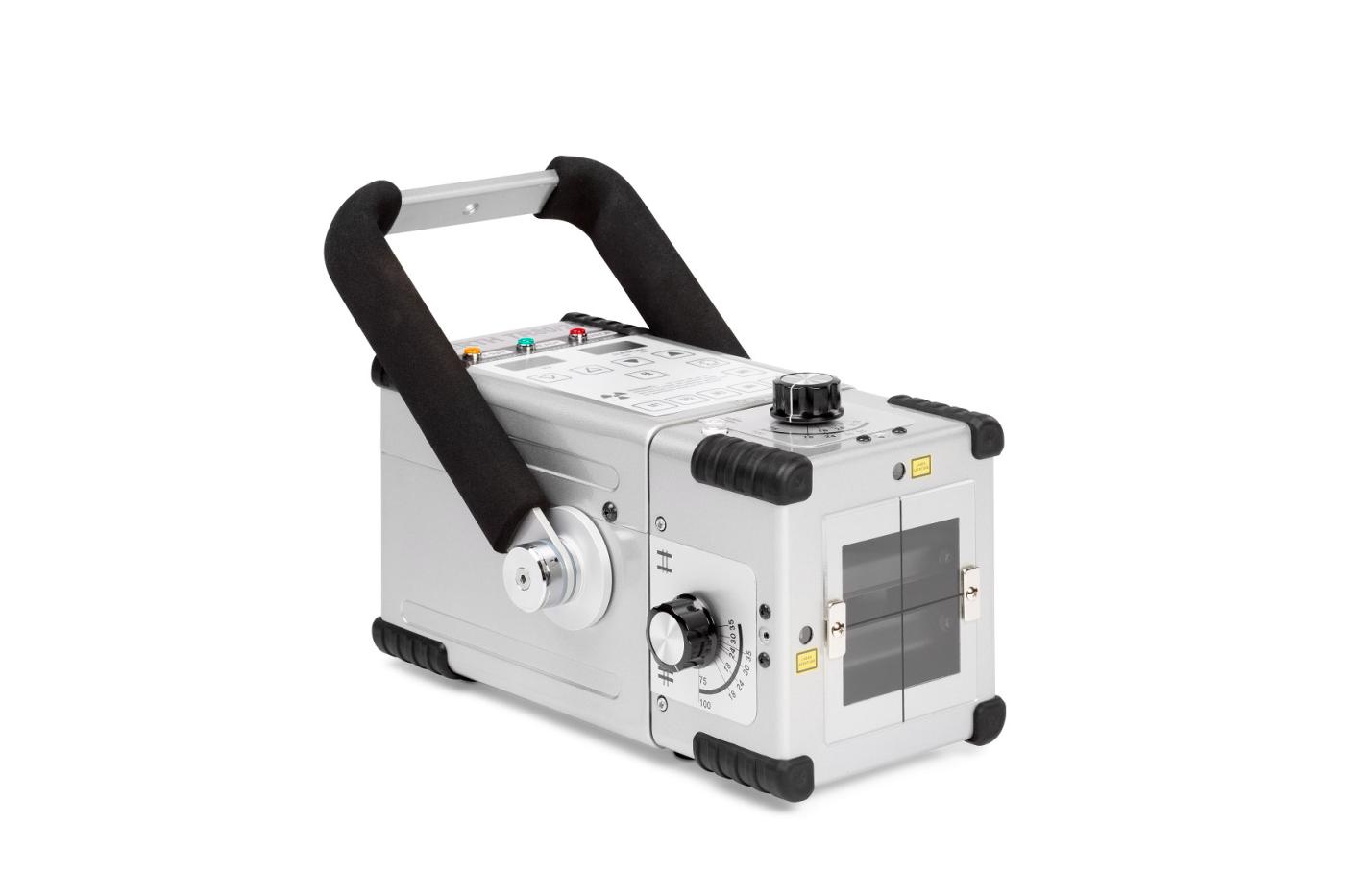

GIERTH TR80/20
GIERTH TR80/20
GIERTH TR80/20

Click the images to enlarge. - Subject to technical changes.
