Stationary X-ray systems for small animals

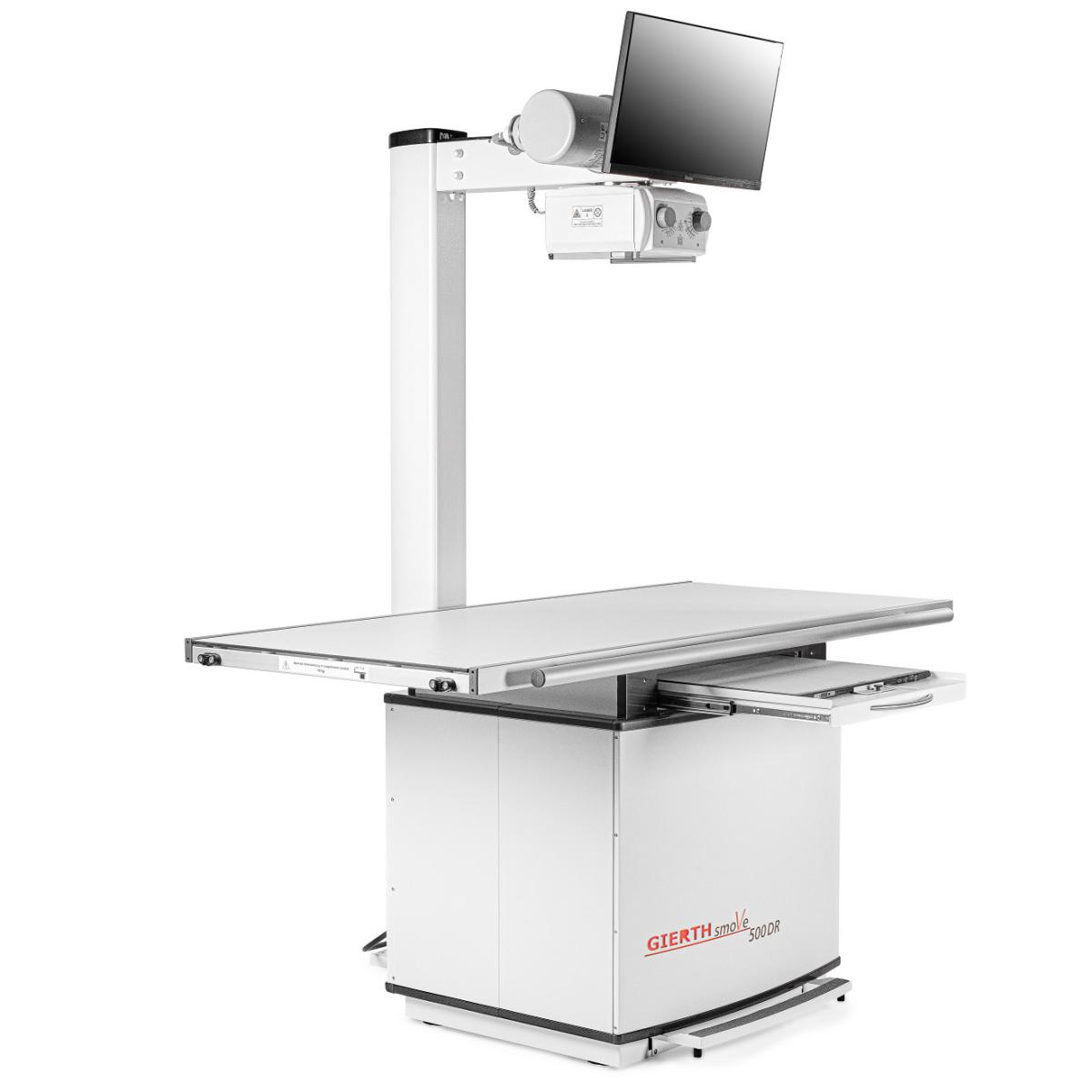

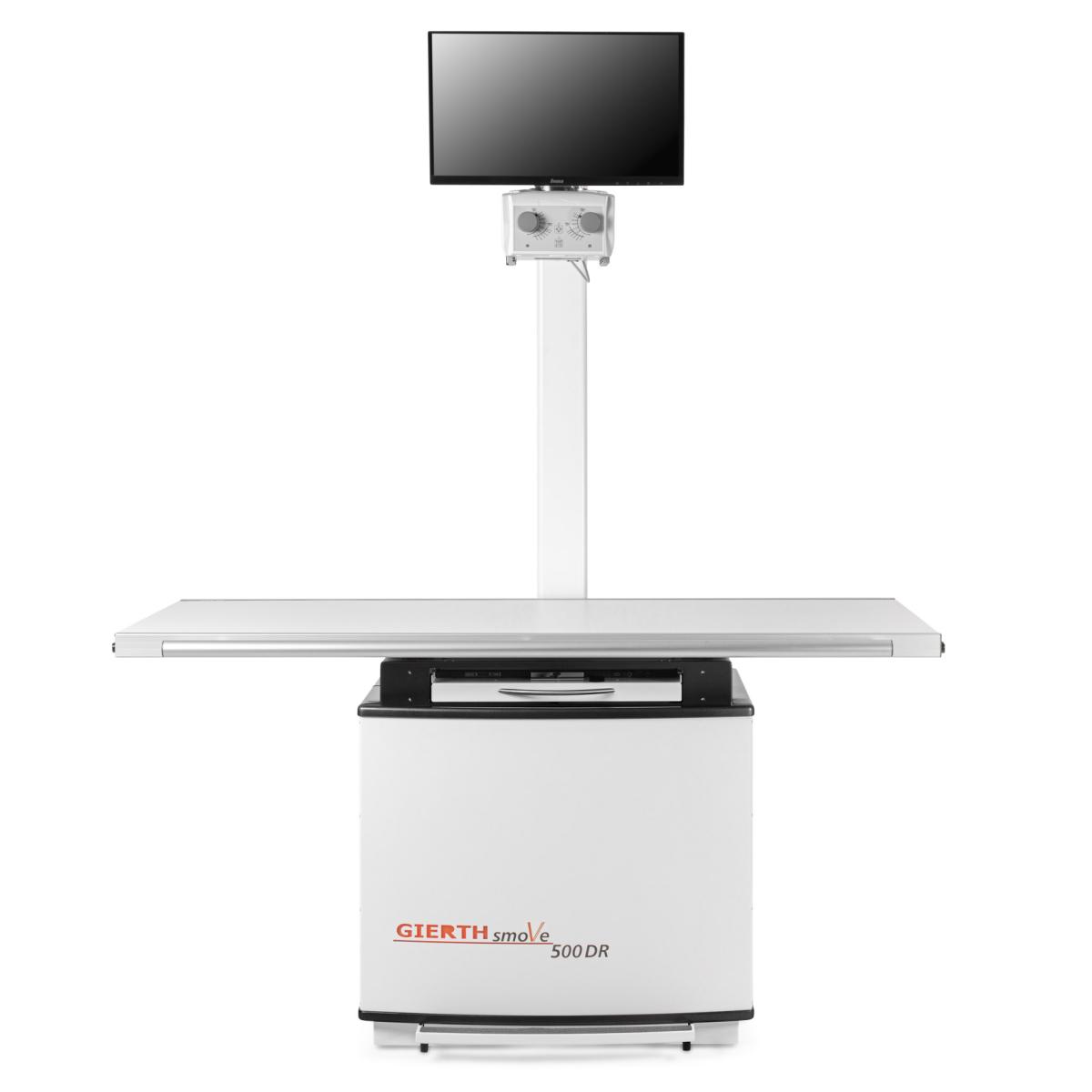

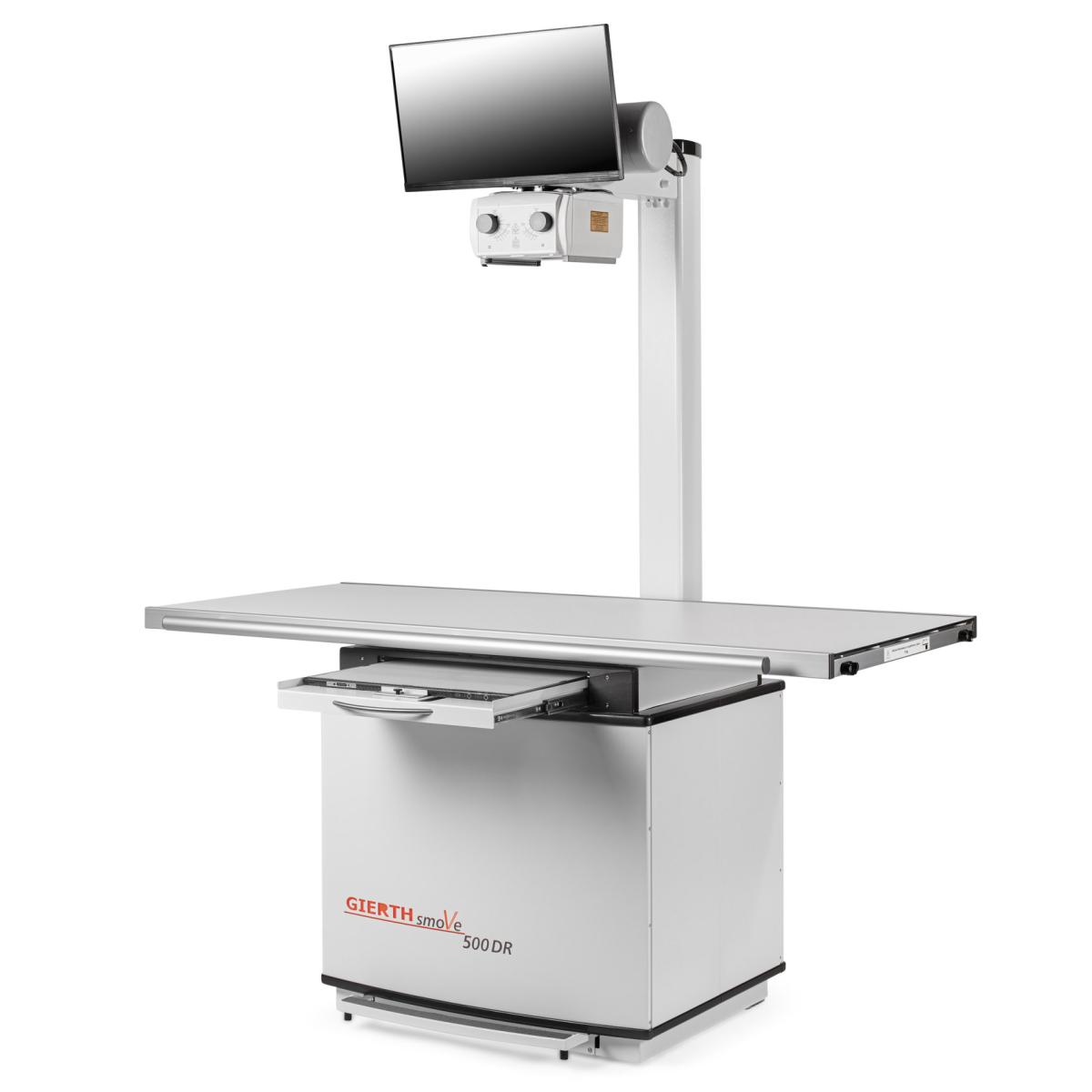

GIERTH smoVe 500 DR

The smove, digital X-ray system for your small animal clinic

• Compact, fully digital and powerful
• X-ray system for small animal clinics
• High quality material look-and-feel through the usage of noncorrosive materials such as aluminium and stainless steel - thereby easy to clean and extremely durable
• Outstanding image quality through high resolving DR-technology powered by CANON
• Available in different configurations and levels
• Powerful 32 kW HF generator as standard solution for normal wall sockets (100-240 VAC) - optional higher kW available
• Floating table top with wide vertical travel distance and low noise magnetic braking system

Specifications:

High frequency generator:

• 32 kW HF-generator (max. 400 kHz) (22kW IEC)
• 100 - 240 VAC, 50/60 Hz
• Single phase (standard wall plug) 16 A
• kV range 40 - 125 kV
• mA range 10 - 500 mA
• Exposition time 0.001 - 15 sec.
• mAs range / steps 0.1 - 500 mAs
• 2-step footswitch, alternatively hand exposure switch

Tube and Collimator:

2-focus rotating anode

• small focus: 0.6 mm
• large focus: 1.5 mm
• Anode angle 14°

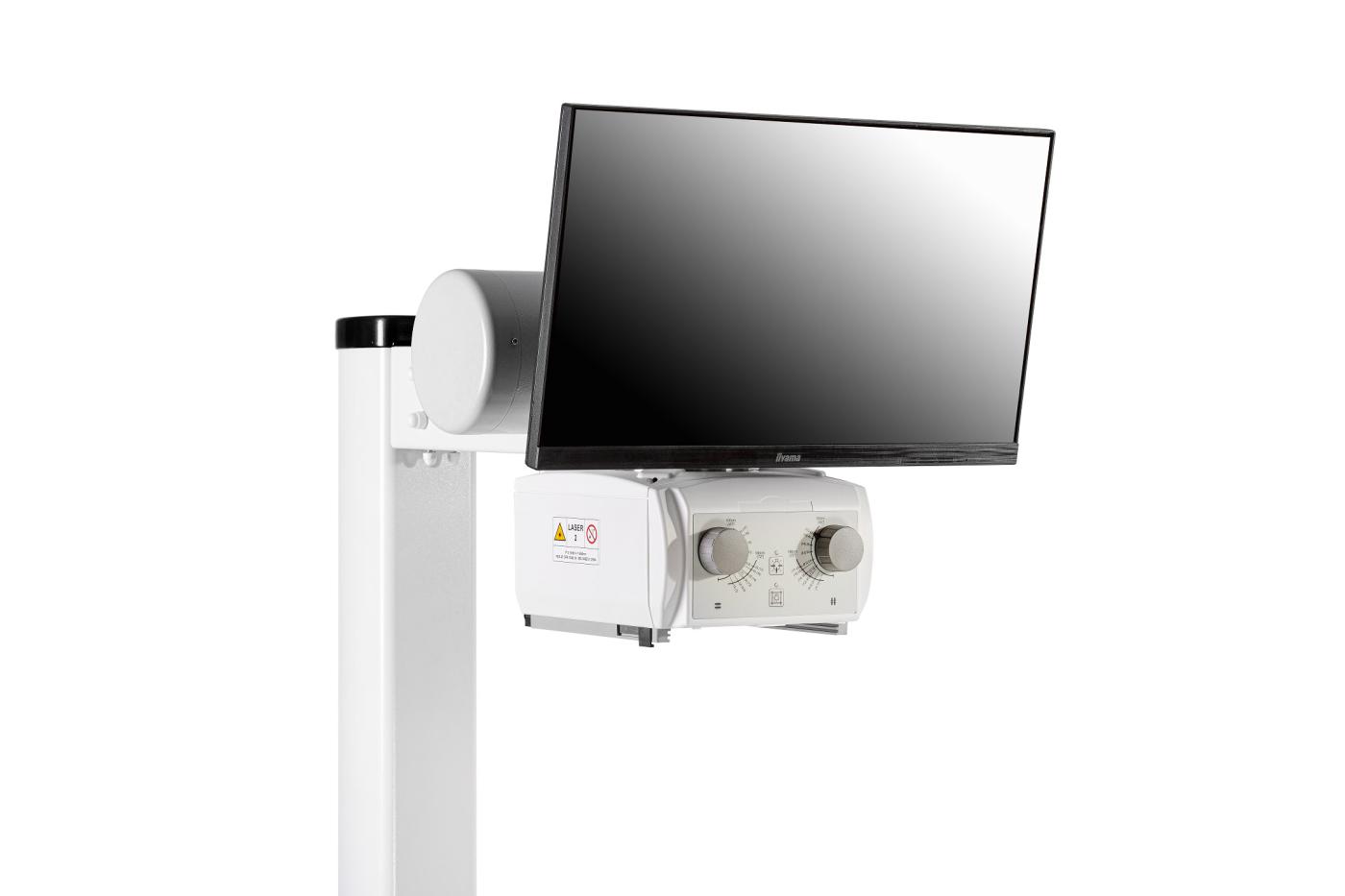

Resolvable collimator

• with power LED technology
• Laser class 2 for central beam projection
• optional filter and timer

Digital system:

• Outstanding image quality at lowest dose rate with CANON FPD
• Dimensions: 38 x 46 cm, optional 46 x 46 cm
• Effective imaging area: 35 x 43 cm, optional 43 x 43 cm
• Pixelsize: 125 μm
• DQE: >0.6 (0 lp/mm)
• CANON CXDI-Control Software NE

Optionally with

• CANON Intelligent Noise Reduction software for experiencing ultralight digital radiography; faster workflow with reduced stress and reduced radiation dose
• CANON Scatter Correction software for reducing the effects of scattered radiation
• CANON Advanced Edge Enhancement Software to enhance the edges of bones or foreign material in captured images

X-Ray table:

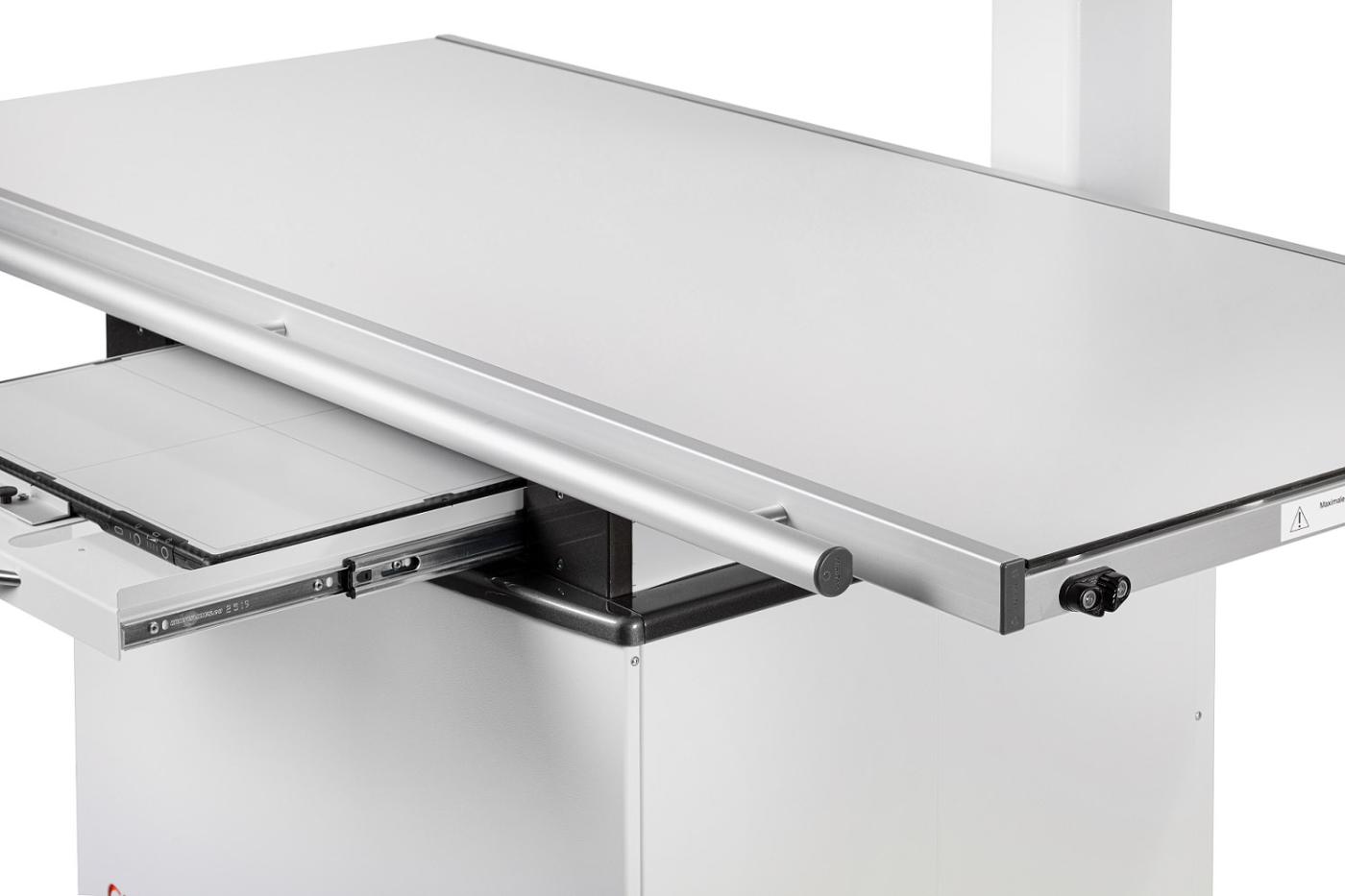

• Floating table top with wide vertical travel distance

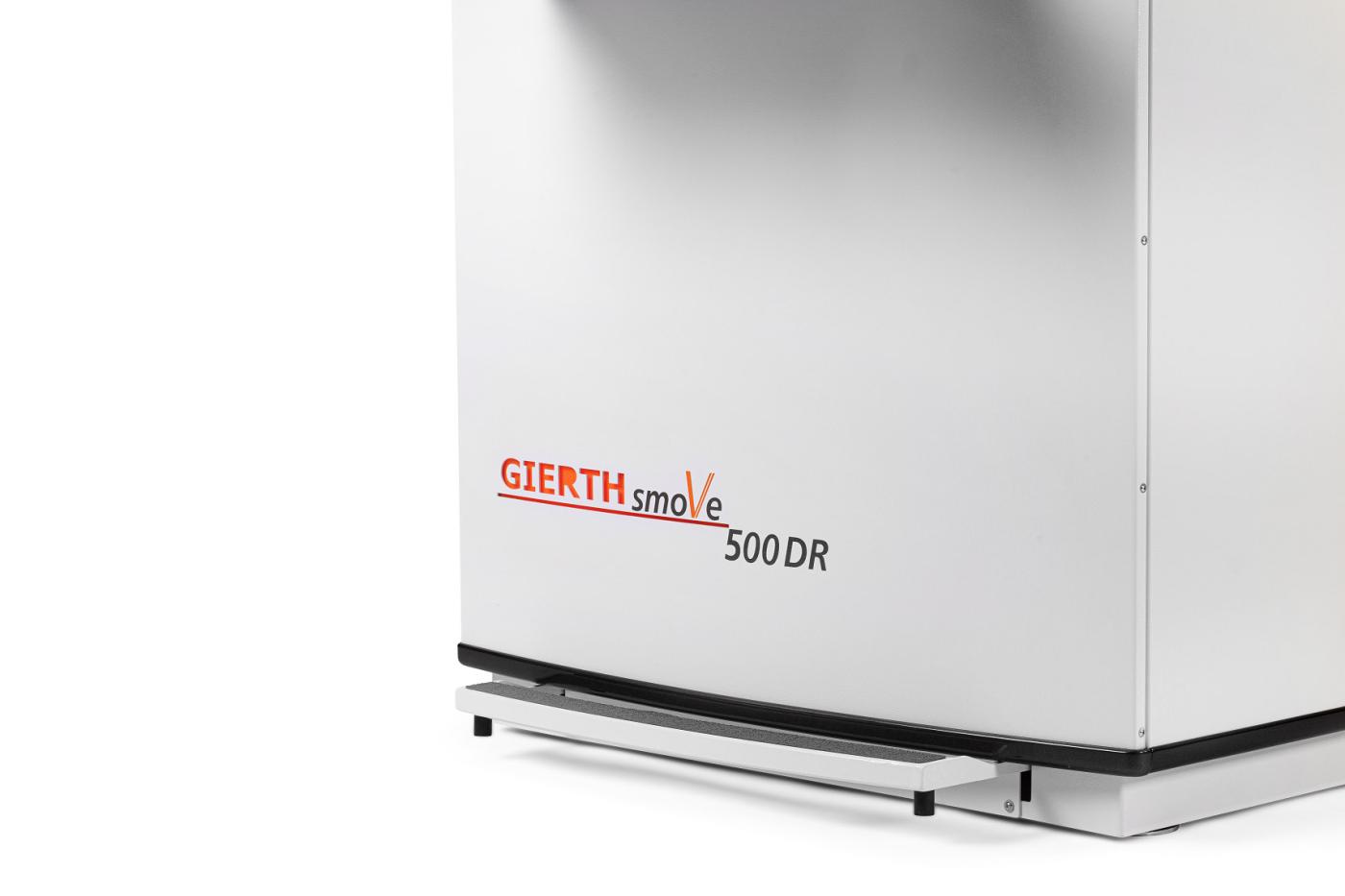

• Low noise magnetic braking system
• X-Ray tube stand with fixed focus-to-film distance (100 cm)
• Multi touch display on top of the table or installed at the wall
• Dose optimized table top with anchorage possibility and easy fastening technology: approx. 155 x 71 cm

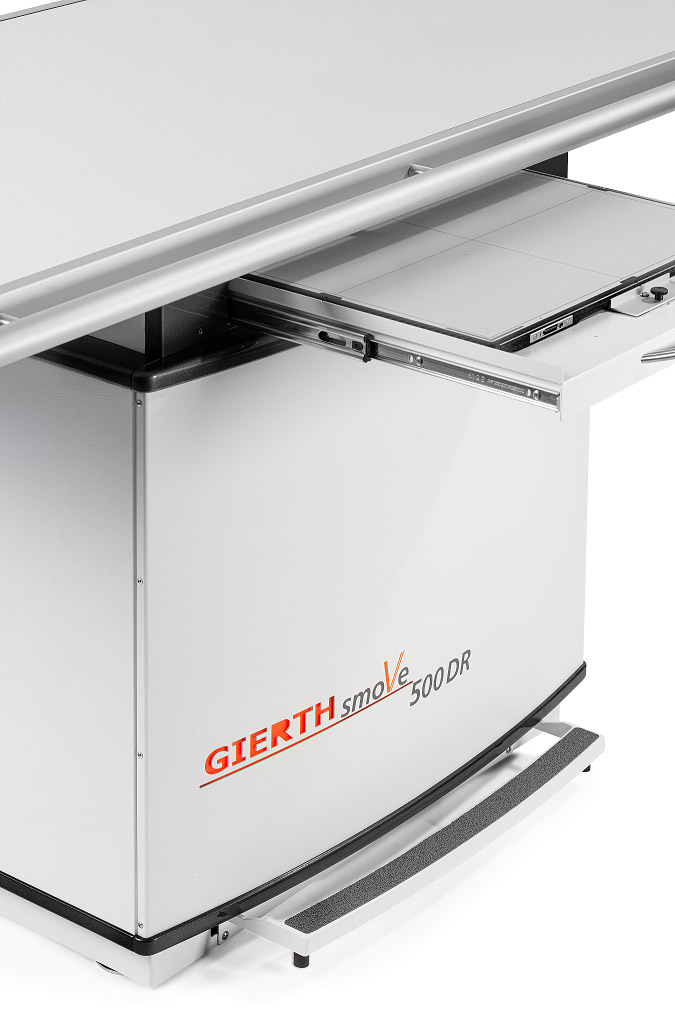

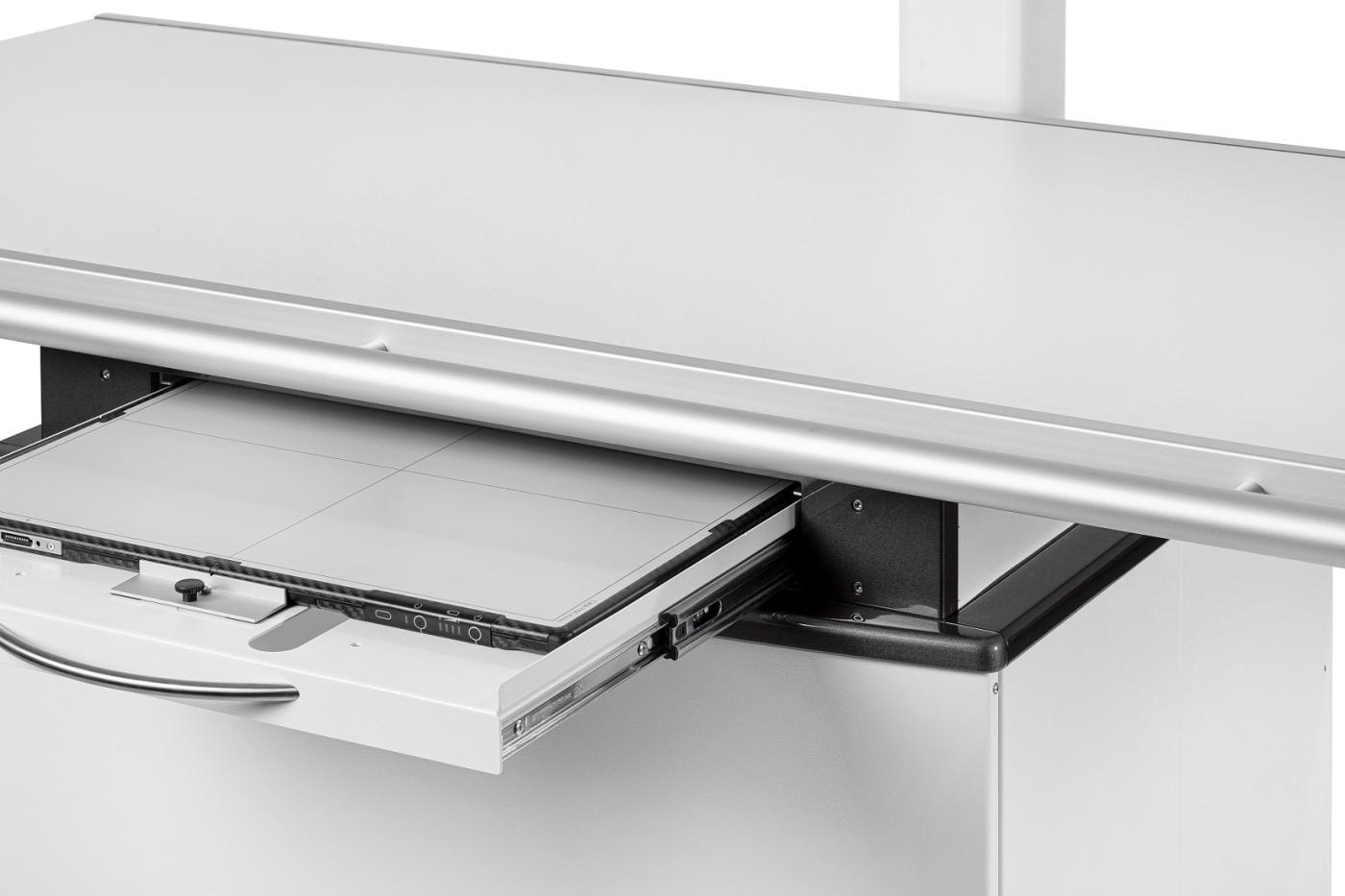

Optional grid slot

Click the images to enlarge. - Subject to technical changes.
