Stationary X-ray systems for small animals

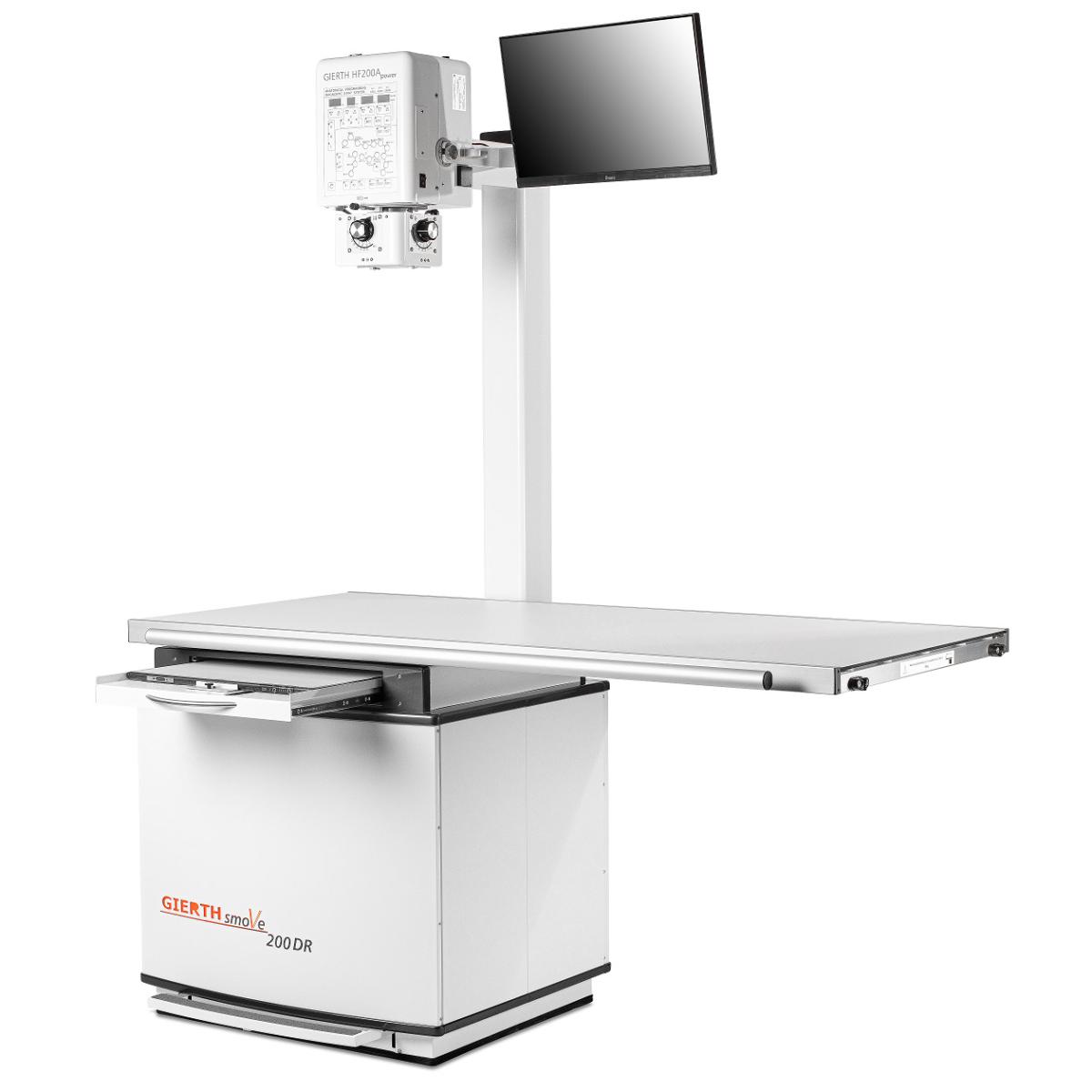

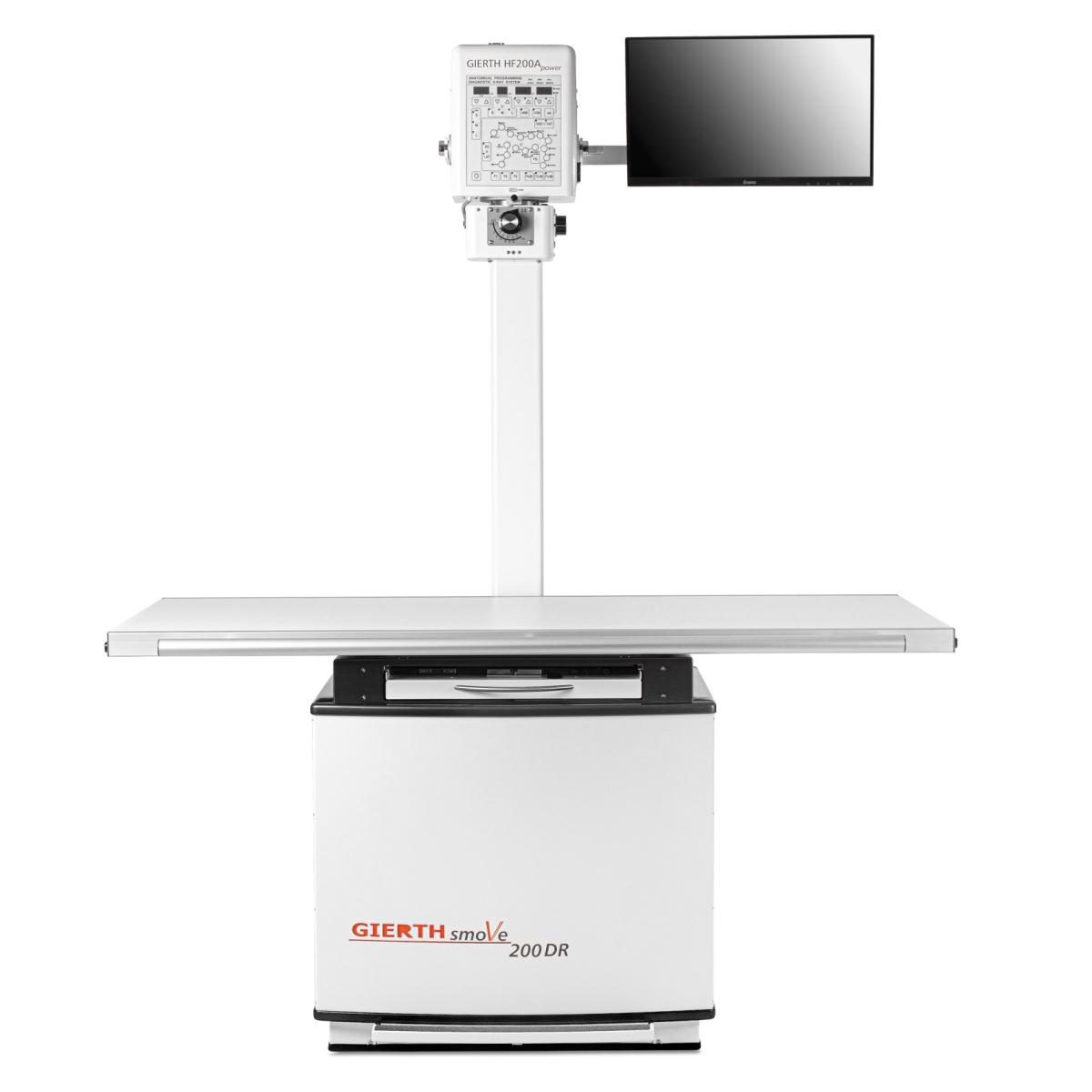

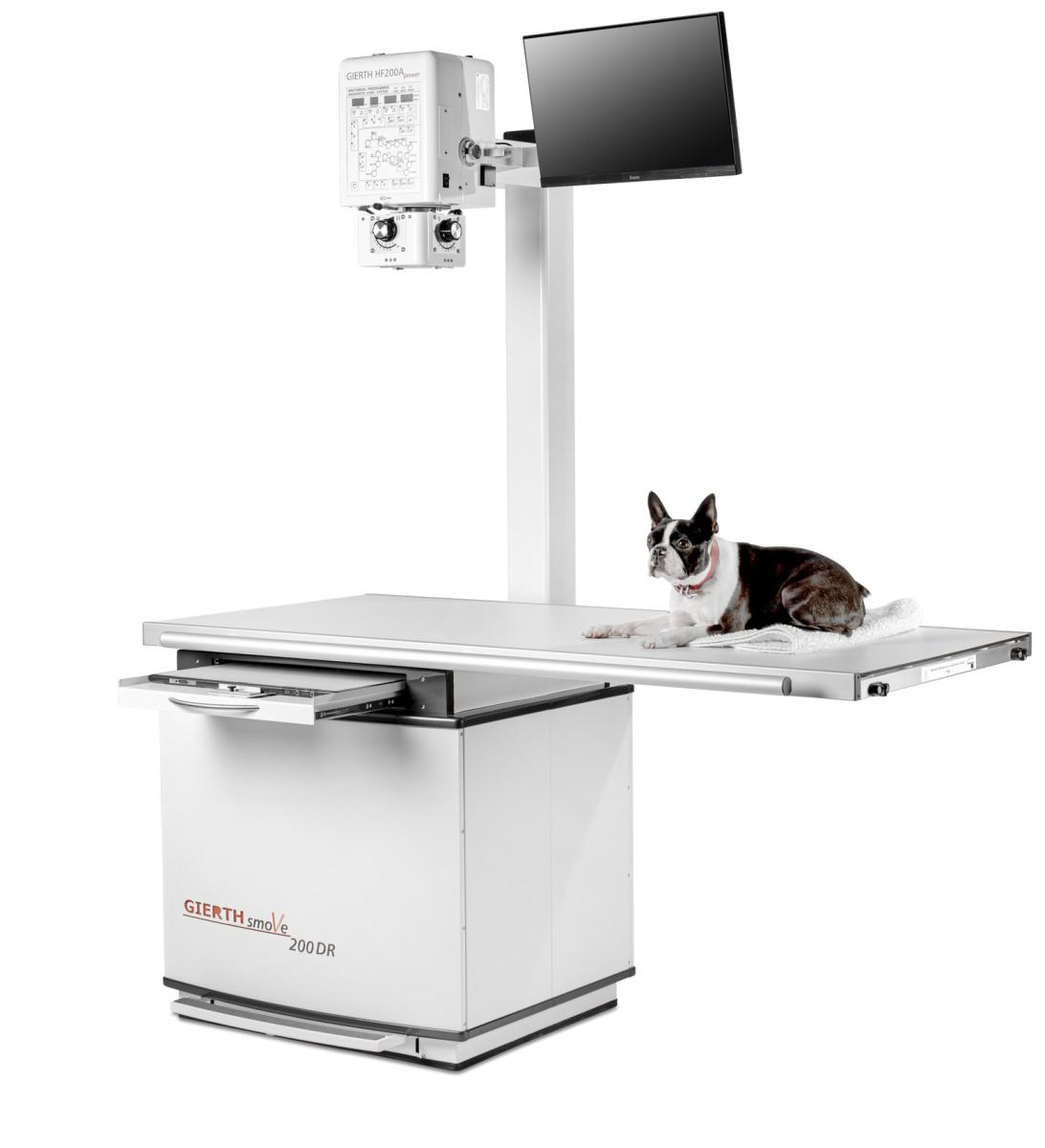

GIERTH smoVe 200 DR

The smove, digital X-Ray system for your small animal clinic

The “SMOVE” X-ray system:

• Compact, fully digital, and powerful X-Ray system for small animal clinics
• Integrated GIERTH HF200A – the high frequency X-Ray unit with anatomical programme for normal wall sockets (100-240 VAC)
• Outstanding image quality through high resolving DR- technology powered by CANON
• High quality material look-and-feel through the usage of noncorrosive materials such as aluminium and stainless steel - thereby easy to clean and extremely durable
• Available in different configurations and levels
• Floating table top with wide vertical travel distance and low noise magnetic braking system, fixing brackets and quick release technology (W x D): approx. 155 x 71 cm
• Low noise and maintenance free braking system
• Optionally available: Grid insertion and CANON Software modules

Specifications:

Generator:

• High-frequency X-ray generator with full bridge inverter system
• Easiest handling due to stored exposure settings for dogs, cats, birds and other pets
• Thickness gauge for measuring object thickness
• Serial interface for connection with digital radiography systems
• Collimator with scale to adjust the size of the light – radiation field
•  2.5kW HF-generator (max. 60 kHz)
• 210-240 V, 50/60 Hz
• Single phase (standard wall plug) 16A
• kV range 30 - 100 kV
• mA range 25 – 40 mA
• Exposition time 0.01 – 2.00 Sek.
• mAs range / steps 0.33 – 66.3 mAs
• 2-step footswitch, alternatively hand exposure switch

Digital System:

• Outstanding image quality at lowest dose rate with CANON FPD
• Dimensions: 38 x 46 cm, optional 46 x 46 cm
• Effective imaging area: 35 x 43 cm, optional 43 x 43 cm
• Pixelsize: 125 μm
• DQE: >0.6 (0 lp/mm)
• CANON CXDI Control Software NE

Optionally with

• CANON Intelligent Noise Reduction software for experiencing ultralight digital radiography; faster workflow with reduced stress and reduced radiation dose
• CANON Scatter Correction software for reducing the effects of scattered radiation
• CANON Advanced Edge Enhancement Software to enhance the edges of bones or foreign material in captured images

X-ray Table:

• Floating table top with wide vertical travel distance
• Low noise and maintenance free braking system
• X-ray tube stand with fixed focus-to-film distance (FFA 100 cm)
• Multi touch display on top of the table or installed at the wall
• Dose optimized table top with anchorage possibility and easy fastening technology: approx. 155 x 71 cm

Optional grid slot





Click the images to enlarge. - Subject to technical changes.
