Portable X-ray devices from MIKASA X-Ray exclusively available at GIERTH X-Ray

Since 1977, GIERTH X-Ray has been the exclusive international distributor for MIKASA X-Ray's portable X-ray units in Europe (excluding Great Britain). Over the past decades, many new innovations in portable X-ray equipment have emerged through joint development efforts, and a close collaboration has developed over the years, allowing us to further develop our expertise and thus act quickly.

GIERTH HF200Apower

Simple operation with the anatomical program

The GIERTH HF200Apower with anatomical program is especially designed and developed for the small animal veterinarian and covers the complete range of veterinary radiography in the field of small animals, birds and exotic pets.

1,200 stored exposure settings help to make the daily routine in a small animal practice as quick and easy as possible. The intuitive user guidance through the anatomical program makes the GIERTH HF200Apower an ideal X-ray unit for the small animal vet.

The updated version leads to an increased (up to 30 %) dose rate.

Short description

  • High – frequency X-ray generator with full bridge inverter system
  • Weight of 17 kg
  • Easiest handling due to stored exposure settings for dogs, cats, birds and other pets
  • Thickness gauge for measuring object thickness
  • Serial interface for connection with digital radiography systems
  • Collimator with scale to adjust the size of the light – radiation field
  • Collimator light can be activated via the hand switch
  • Acustic and optical timer signal
  • Dual laser pointer
  • Digital display „X-RAY“, „READY“ and „ERROR“
  • Tape measure for film – focal spot distance
  • Aluminium casing

Technical data

Inverter frequency: 62.5 kHz
Power Requirement: 2.5 kVA
Output in 2-kV Steps: 30 – 60 kV = 40 mA (max.)
62 – 70 kV = 35 mA (max.)
72 – 80 kV = 30 mA (max.)
82 – 100 kV = 25 mA (max.)
X-ray tube: KL31
Focal spot: 1.2 mm x 1.2 mm
Dimensions L x W x H: 405 mm x 290 mm x 230 mm
Total filtration: 2.7 mmAl

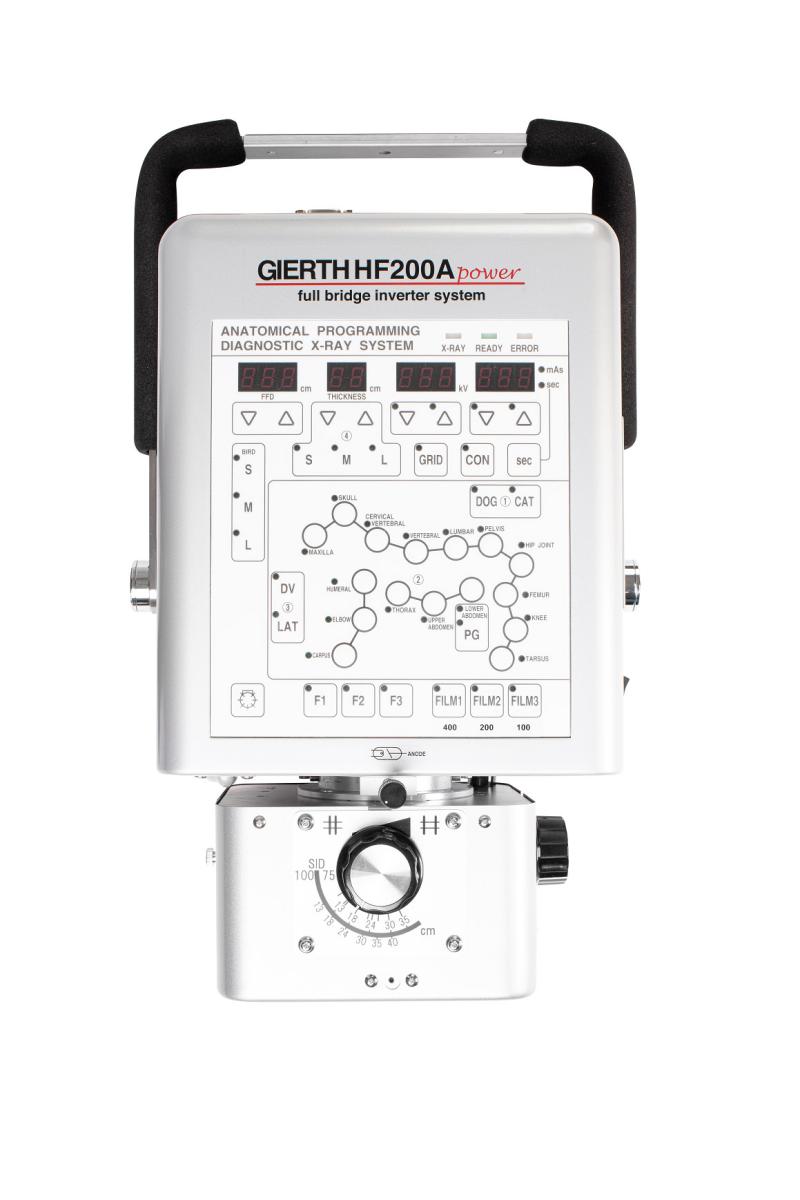

GIERTH HF200Apower

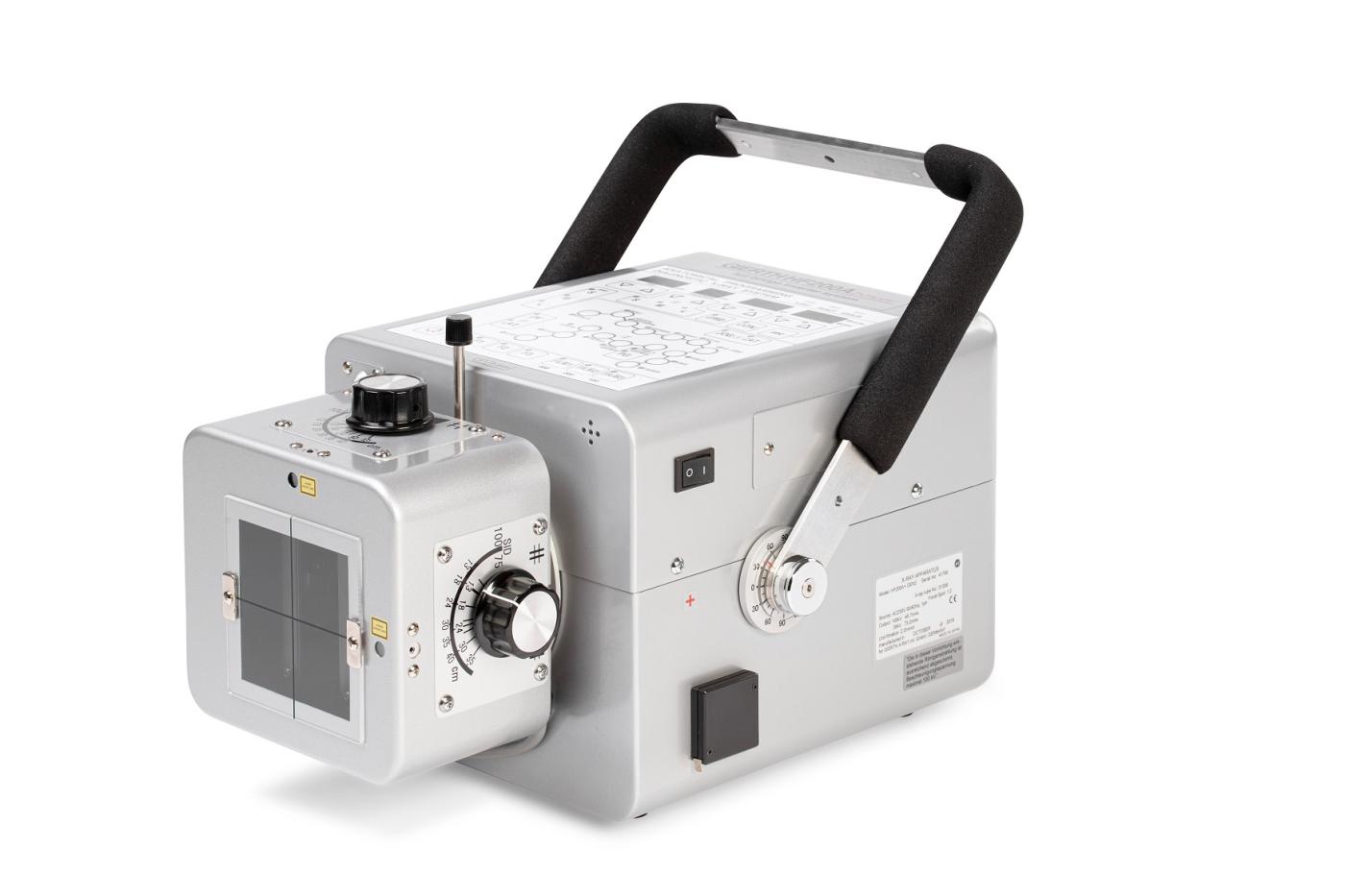

GIERTH HF200Apower

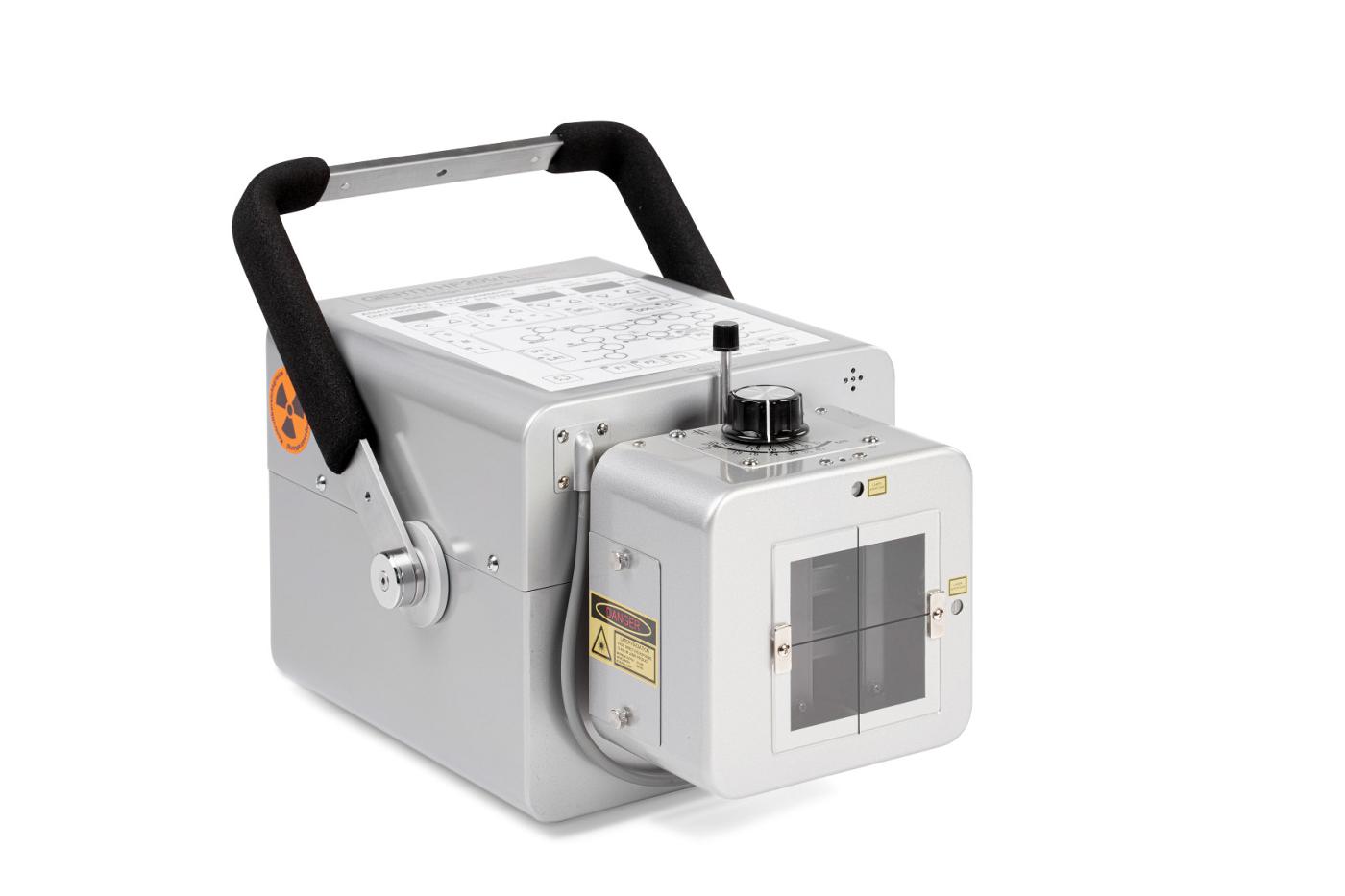

GIERTH HF200Apower

Click the images to enlarge. - Subject to technical changes.
