GIERTH CombiVet S

X-ray table with integrated stand for examinations with image receptor at or below the table

The combiVet S is a versatile X-ray table with integrated X-ray stand. The positioning of the image receptor may either be at or below the table top to eliminate image cut-off. The cassette drawer of the combiVet S moves simultaneously to the X-ray generator and allows a comfortable positioning of the four-footed patient.

An optional pet positioner for DDH images is available on request.

Short description:

  • Table frame made of anodised aluminium
  • Simultaneously to the generator moving cassette / grid frame
  • Table top made of radiolucent white synthetic material
  • Easy to clean and disinfect

Technical data:

Dimensions (L x W x H):
155.5 cm x 76.5 cm x 73 cm (without stand)

Size of table board:
155.5 cm x 67.5 cm

Unit suspension type I:
Standard unit suspension with fixed FFD

Unit suspension type III:
Height adjustable, axial movement and pivot joint for rotation of the X-ray unit

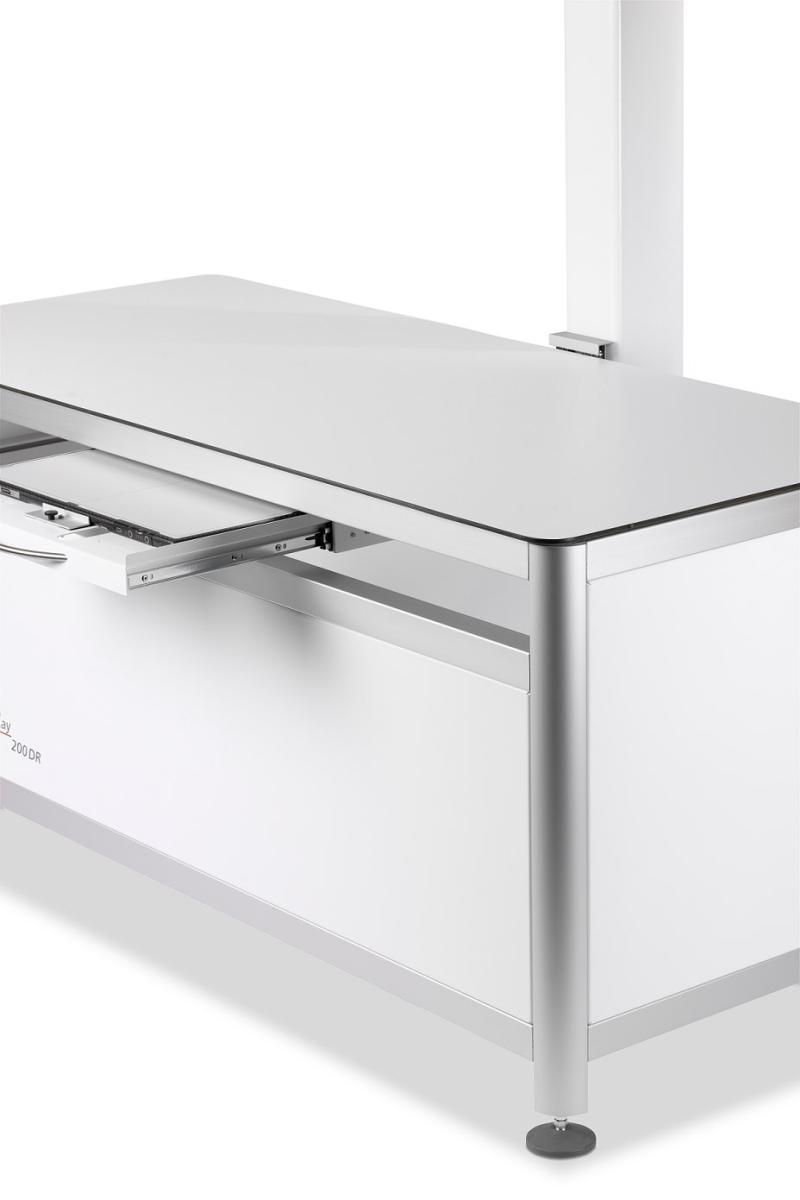

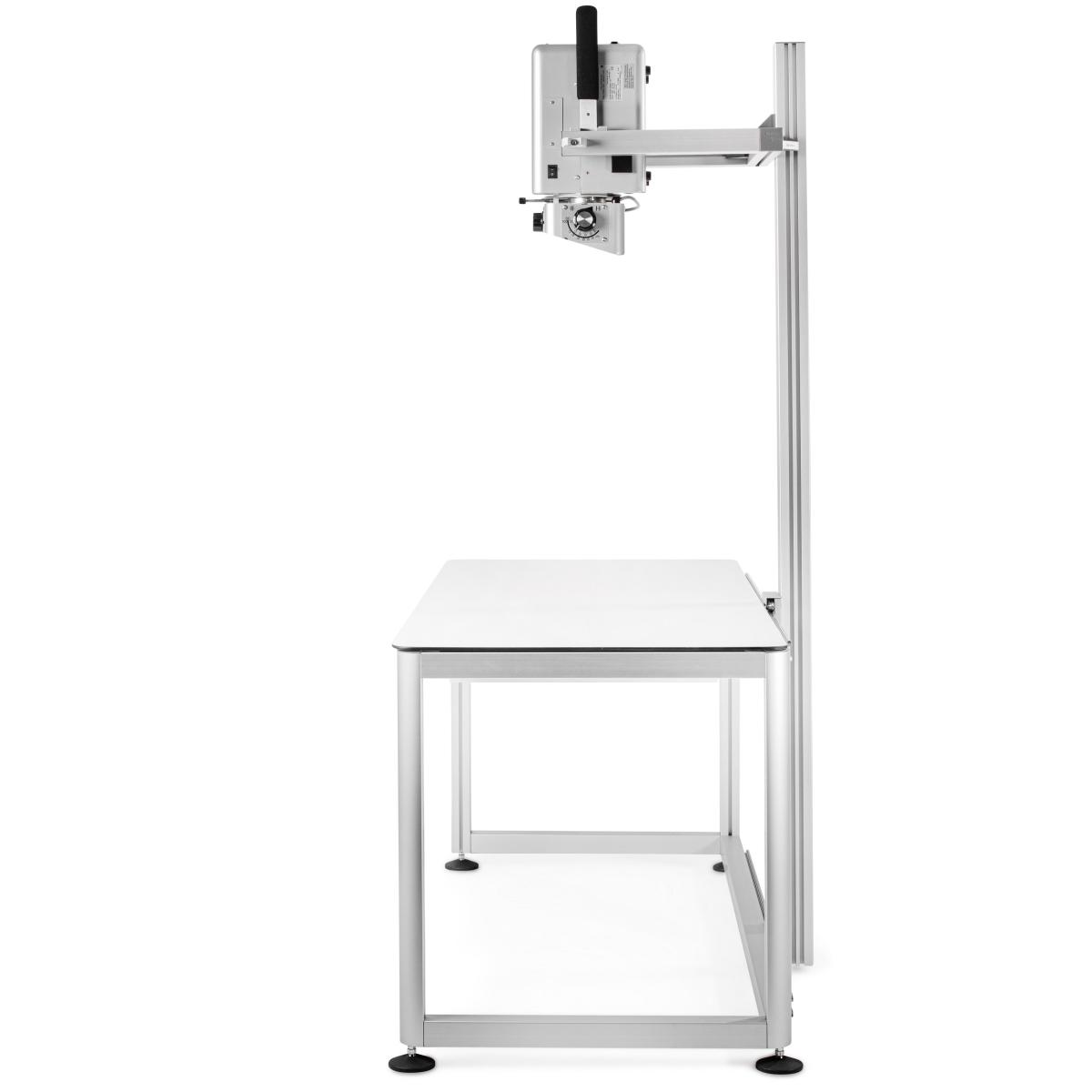

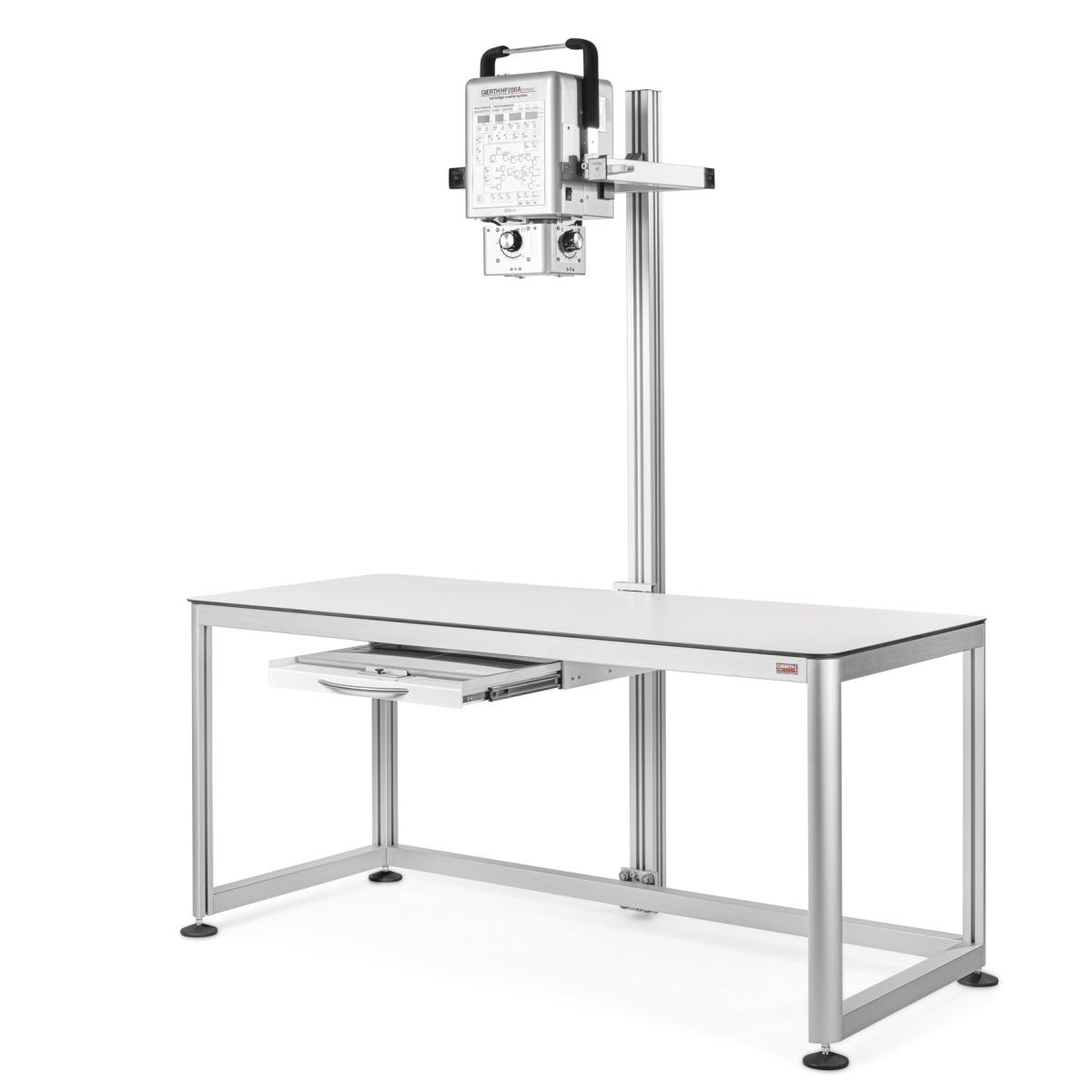

GIERTH CombiVet S
GIERTH CombiVet S
GIERTH CombiVet S
GIERTH CombiVet S

Click the images to enlarge. - Subject to technical changes.
