Stationary X-ray systems for small animals

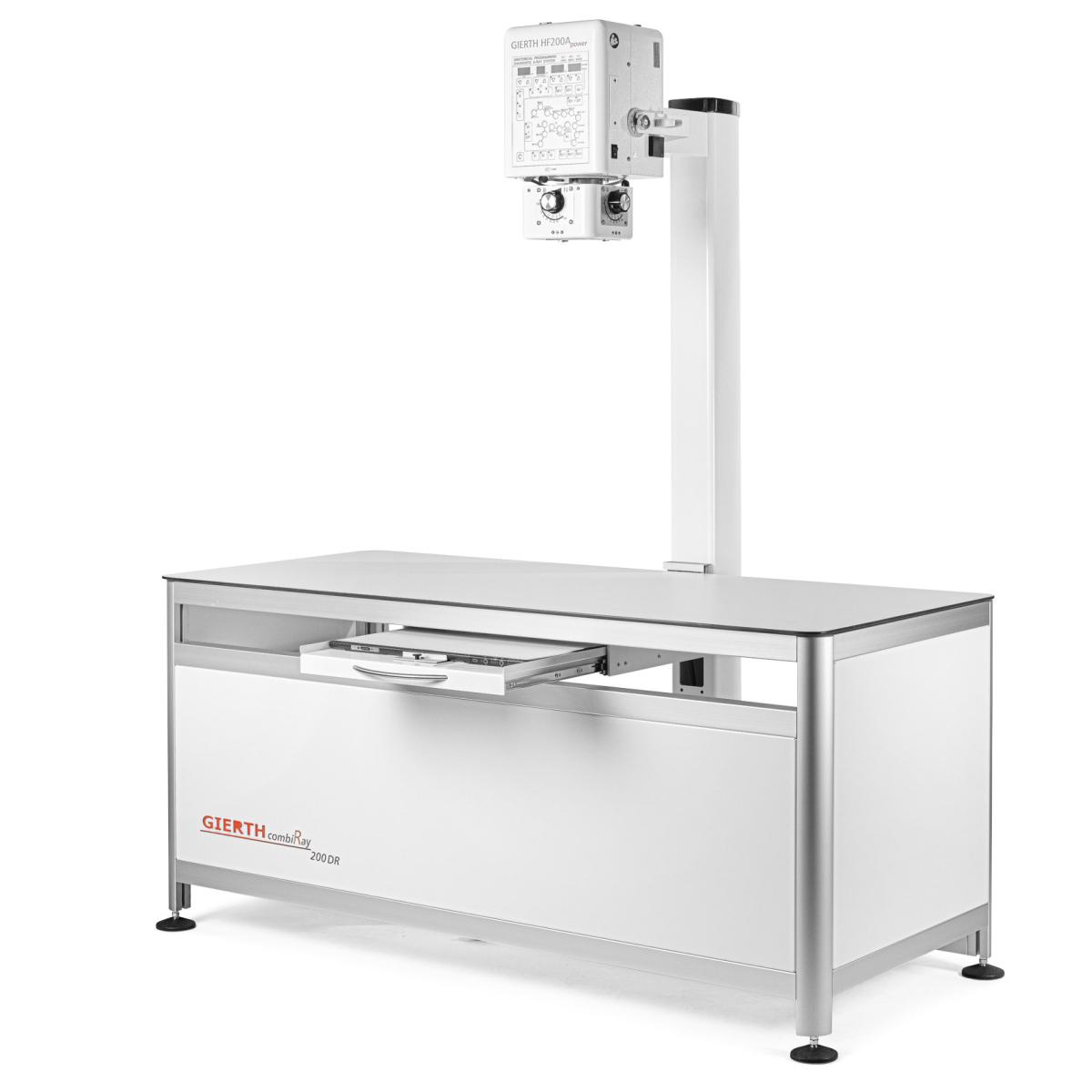

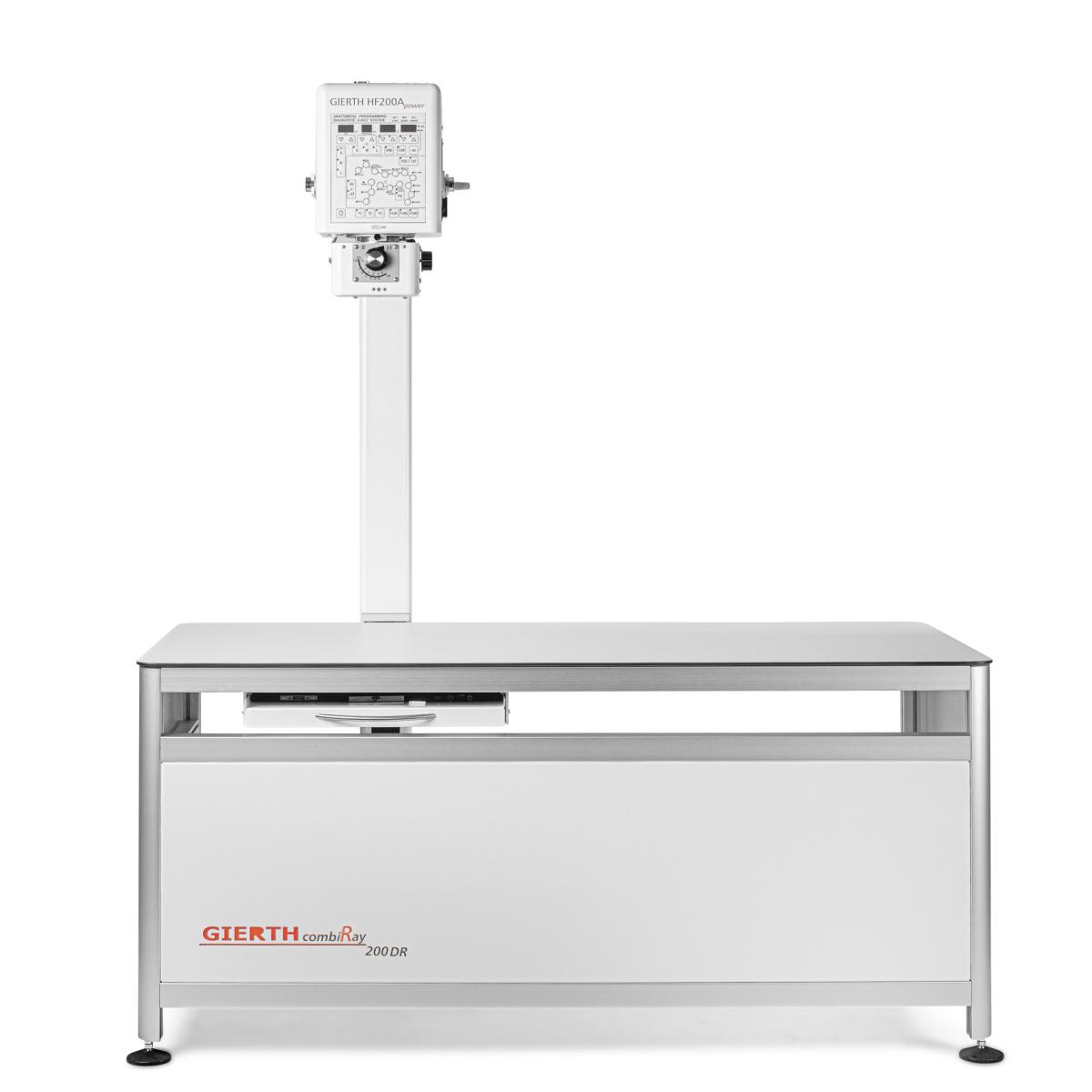

GIERTH combiRay 200 DR

The flexible X-ray system:

• Compact, fully digital, and powerful X-ray system for small animal clinics
• Complete X-ray system with a 100 kV HF generator and an integrated DR technique
• Outstanding image quality through high resolving DR-technology powered by CANON
• High quality material look-and-feel through the usage of noncorrosive materials such as aluminium and high-graded steel - thereby easy to clean and extremely durable
• Centred adjusted X-ray unit can be moved lengthwise, cassette / grid holder follows the generator accordingly
• Available in different configurations and levels

Specifications:

Generator:

• 100 kV HF-generator (2.5 kVA)
• 210 - 240 VAC, 50/60 Hz
• single phase (standard wall plug) 16 A
• kV range 30 - 100 kV
• mA range 25 - 40 mA
• exposition time 0.01 – 2.00 sec.
• 2-step footswitch, alternatively hand exposure switch
• Focus 1.2 mm x 1.2 mm
• Rotating collimator with modern LED technology and dual laser for central beam projection for easy positioning of central ray
• Easy handling due to 1,200 pre-set exposure data for various animal species (dogs, cats, birds, pets, manual settings)

Digital System:

• Outstanding image quality at lowest dose rate CANON FPD based on amorphous silicium with CsI Scintillator
• Dimensions: 38 x 46 cm, optional 46 x 46 cm
• Effective imaging area: 35 x 43 cm, optional 43 x 43 cm
• Pixel size: 125 μm, e.g. DQE: >0.6 (0 lp/mm)
• Specially modified application software for small animal practice

Optionally available with

• CANON Intelligent Noise Reduction software for experiencing ultralight digital radiography; faster workflow with reduced stress and reduced radiation dose
• CANON Scatter Correction software for reducing the effects of scattered radiation
• CANON Advanced Edge Enhancement Software to enhance the edges of bones or foreign material in captured images

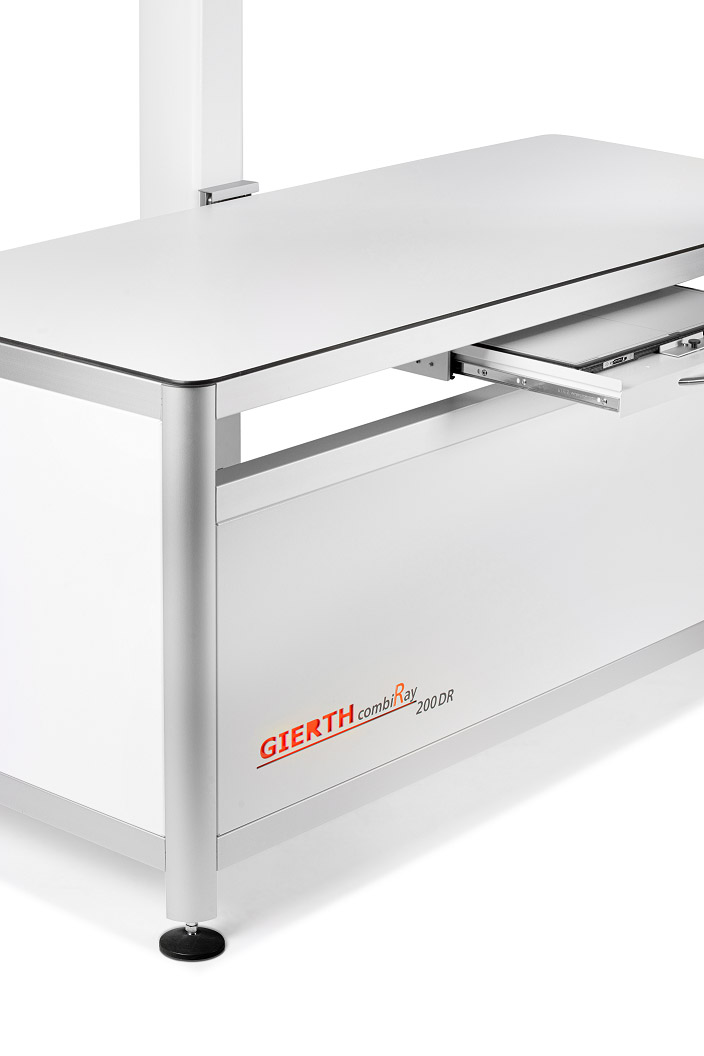

X-ray Table:

• X-ray tube stand with fixed focus-to-film distance (100 cm)
• Optionally available with mounting support for screens and PC for an easier handling while X-raying
• Dose optimized table top with anchorage possibility and easy fastening technology: approx. 155 x 67 cm
• Optional grid slot

Click the images to enlarge. - Subject to technical changes.
